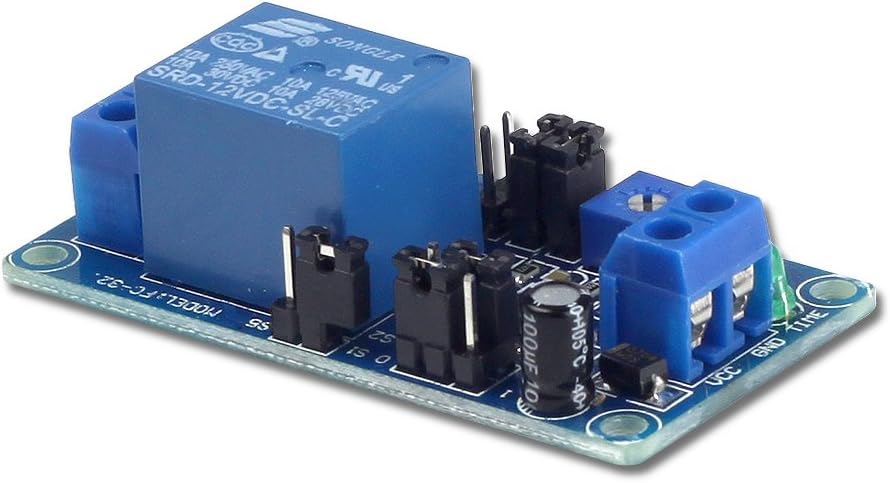

The DC 12V time delay relay module is versatile and adjustable. The delay time can be adjusted with a potentiometer at shortest 0.1s up to 1h. User can delay time as needed, widely used in Smart home, Tachograph, GPS, PLC control, industrial control, electronic experiment, Arduino robot etc.

Features:

Input voltage: 12VQuiescent dissipation: 5.5mAMaximum power consumption:42mA

Relay load capacity:

250V 10A AC (2500W ideal power AC)30V 10A DC (300W ideal power DC)

Functions:

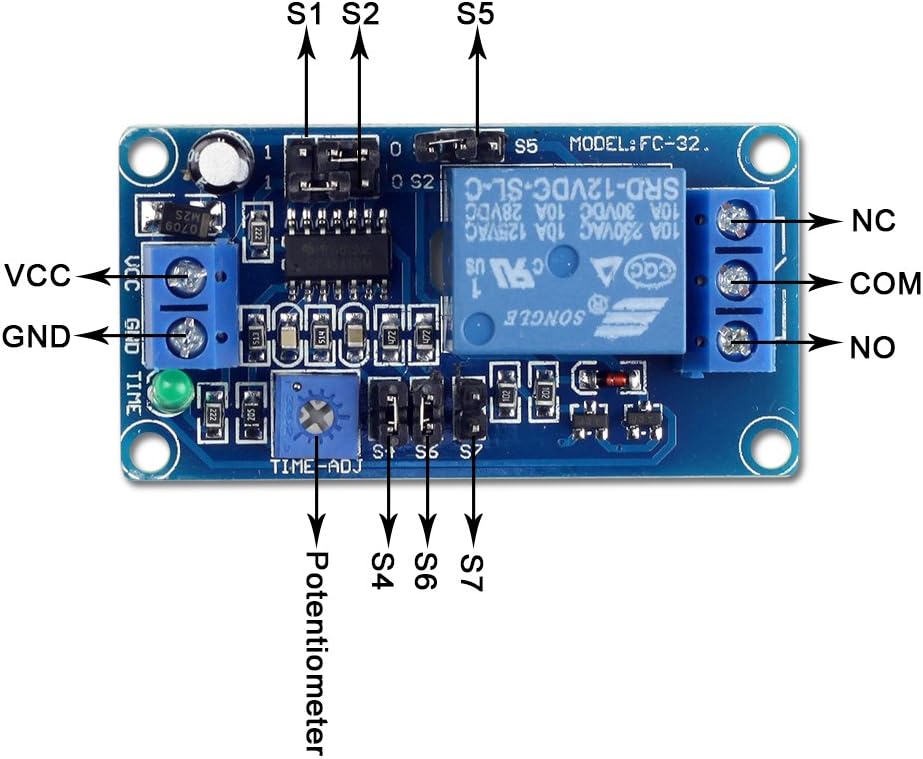

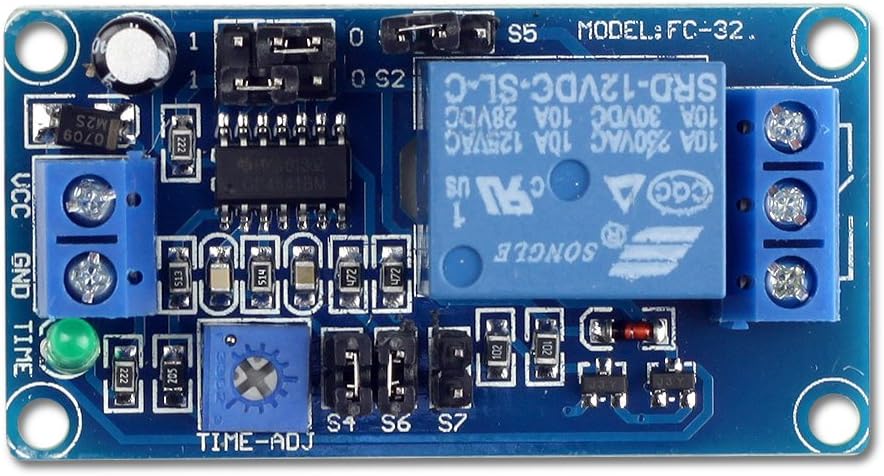

Short S6, open S7, delay turn offShort S7, open S6, delay turn onTips： When controlling AC current or DC voltage that is not 12V, please remove the jumper cap of S5, otherwise the module will be burned or will not work properly.

Package including:

1pcs Time Relay module

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.4 out of 5 stars 338

4.4 out of 5 stars 338

4.3 out of 5 stars 227

Price

$12.99$12.99 $19.79$19.79 $9.59$9.59

Operating Voltage
DC 12V DC 12V DC 12V

Quiescent Current
5.5mA 5.5mA 5.5mA

Functions
18 modes 18 modes 2 modes

Case
no data

✓
no data

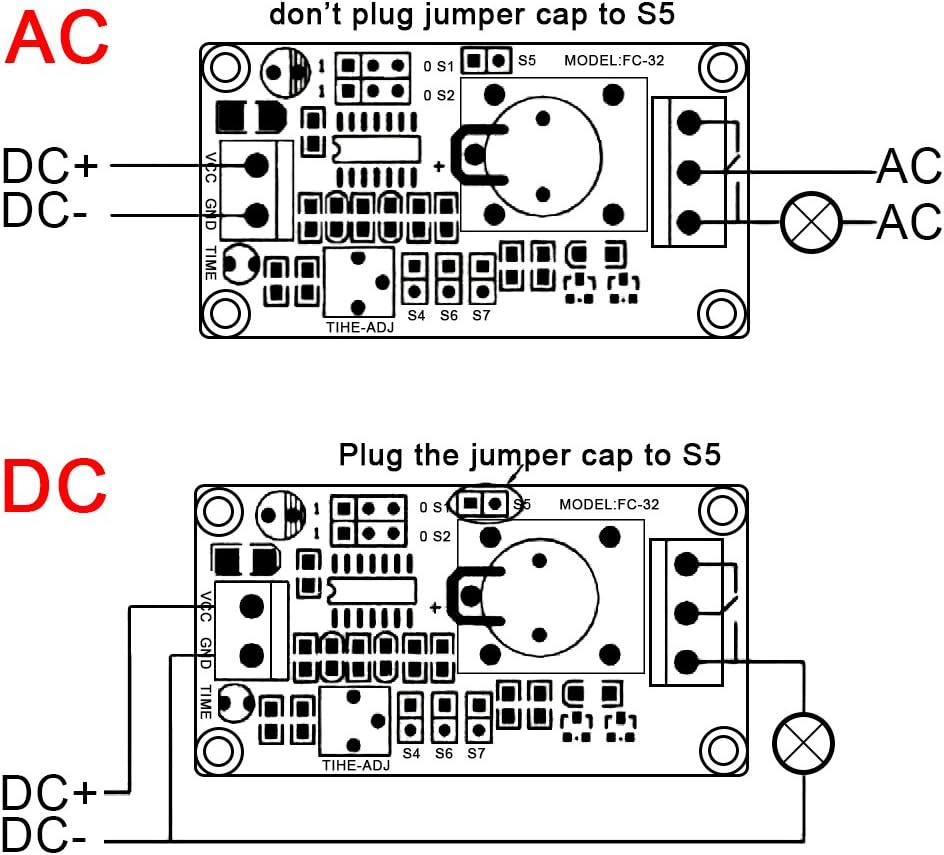

IMPORTANT NOTE: Please remove the jumper cap of S5 when controlling AC current or DC current voltages other than 12V, otherwise the module will be burned or will not work properly.
Operating Voltage: DC 12V; Quiescent Current: 5.5mA; Max. Operating Current: 42mA; Max. Load Voltage: terminal NC is DC 30V or AC 250V, terminal NO is DC 28V or AC 125V; Max. Load Current: 10A
Functions: Supports on delay and off delay modes, the delay time can be adjusted from 0.1s to 1h, the delay mode and delay time can be set by shorting or opening the jumper pins and rotating the potentiometer.
Self Protection: Built with protection against reversal diode, supports anti-reverse protection.
Applications: This module works as a switch with time delay on and off function, highly recommended for automotive circuit modification, and LED lights, DC motors, pump and smart home control system.
