Product description

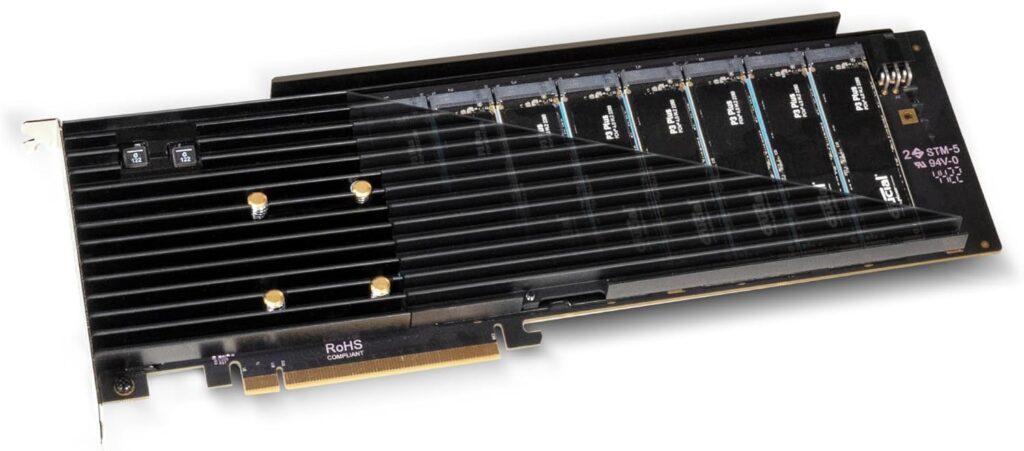

Sonnet M.2 8×4 Silent Gen4 PCIe Card – Add up to 64TB of SSD Storage In One Card Slot!

Eight M.2 NVMe SSD Slots on a PCIe 4.0 x16 Card – Add Your Own M.2 NVMe SSDs

Ultra-fast Gen4 SSD Data Transfers

Speed or capacity? Not too long ago, you had to make a choice between the two. The problem is, for many professional workflows, both are critical. Everyone knows M.2 NVMe PCIe SSDs offer great performance, but limited capacity. Hard drives offer great capacity, but very slow speeds by comparison. What if you could create increased SSD capacity? We make it possible — the Sonnet M.2 8×4 Silent Gen4 PCIe Card enables you to mount up to eight NVMe SSDs into a single x16 PCIe card slot and combine their capabilities for ultra-performance. This card can transform your workflow.

With Heatsink

PCI Express 4.0 x16 host bus interface plus x48 PCIe 4.0 switch; x16 slot bandwidth is available to all x4-connected SSDs.

Without Heatsink

No Thermal Throttling: Custom silent cooling solution enables installed SSDs to maintain consistent high performance during very large file transfer operations without the use of fans.

With M.2 NVMe SSDs (Sold Separately)

NVMe complaint (No Drivers Required)

Mounts up to eight 8TB M.2 NVMe Gen4 or Gen3 SSDs (sold separately) in an x16 PCIe slot. Higher-capacity SSDs will be supported when available.

48-lane PCIe 4.0 Switch

x16 slot bandwidth is available to all x4-connected SSDs, facilitating maximum speed with any combination of M.2 SSDs used

One Slot. One Card. 64TB of Fast NVMe Storage.

RAID Support: Supports macOS, Windows, and Linux RAID 0, 1, and 10 support.

Compatible with Mac, Windows, and Linux computers with an x16 PCIe slot.Works with a wide variety of M.2 NVMe Gen4 and Gen3 SSDsThis Sonnet card doesn’t require a specific motherboard to operate or specific SSDs to support RAID features – no PCIe bifurcation requiredmacOS Boot Support Supports booting from single (non-RAIDed) attached SSDs.

Add to Cart

Customer Reviews

4.1 out of 5 stars 4

4.2 out of 5 stars 124

3.9 out of 5 stars 13

3.9 out of 5 stars 9

3.4 out of 5 stars 35

Price

$799.99$799.99 $299.99$299.99 $169.99$169.99 $222.53$222.53 $99.99$99.99

M.2 NVMe SSDs

✓

✓
no data
no data

U.2 NVMe SSDs
no data
no data
no data

✓
no data

SATA SSDs
no data
no data
no data
no data

✓

# of SSD Slots
8 4 2 2 2

64TB or Storage

✓
no data
no data

✓
no data

32TB or Storage
no data

✓
no data
no data
no data

16TB of Storage
no data
no data

✓
no data

✓

Full-Height Card

✓

✓
no data

✓

Low-Profile Card
no data
no data

✓
no data
no data

Compatible with Mac, Windows and Linux

✓

Add up to 64TB Ultra-fast Storage: Mounts up to eight 8TB M.2 NVMe Gen4 or Gen3 SSDs (sold separately) in an x16 PCIe slot. Higher-capacity SSDs will be supported when available. NVMe Compliant.
High-performance PCIe Interface: PCI Express 4.0 x16 host bus interface plus x48 PCIe 4.0 switch; x16 slot bandwidth is available to all x4-connected SSDs.
Superior Performance: Achieve sustained four SSD RAID 0 speeds up to 30,000 MB/s.
RAID Support: Supports Windows, and Linux RAID 0, 1, and 10 support.
No Thermal Throttling: Custom silent cooling solution enables installed SSDs to maintain consistent high performance during very large file transfer operations without the use of fans.
