Product description

FHSS* spread spectrum algorithm and 67-channel pseudo-random frequency hopping ensures excellent anti-interference performance, highly constant, and stable transmission signal present on all 8 channels of R8XM.

*Frequency Hopping Spread Spectrum offers three main advantages: signals are highly resistant to narrowband interference, are difficult to intercept, and can share a frequency band with many types of conventional transmissions with minimal interference.The maximum range is tested in an unobstructed area free of interference.

Key Features

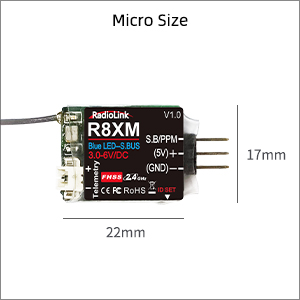

Micro Size The weight is as light as 4g and the small size of 22*17mm makes R8XM tiny enough even for mini racing drones and gliders.

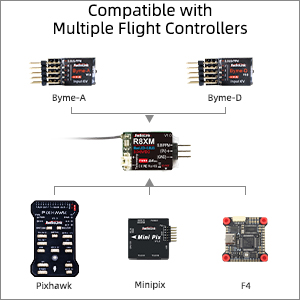

Compatible with Multiple Flight Controllers Compatible with flight controllers such as PIXHAWK, Mini Pix, TURBO PiX, APM, F4, F7, etc.

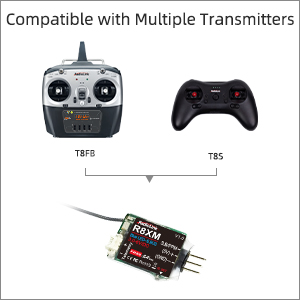

Compatible with Multiple Transmitters Compatible with Radiolink T8FB and T8S transmitters.

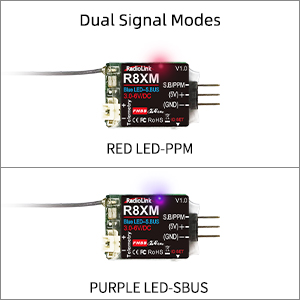

Dual Signal Modes

R8XM supports SBUS and PPM two signals output.

The receiver indicator is RED means all 8 channels output PPM signal.The receiver indicator is PURPLE means all 8 channels output SBUS signal.

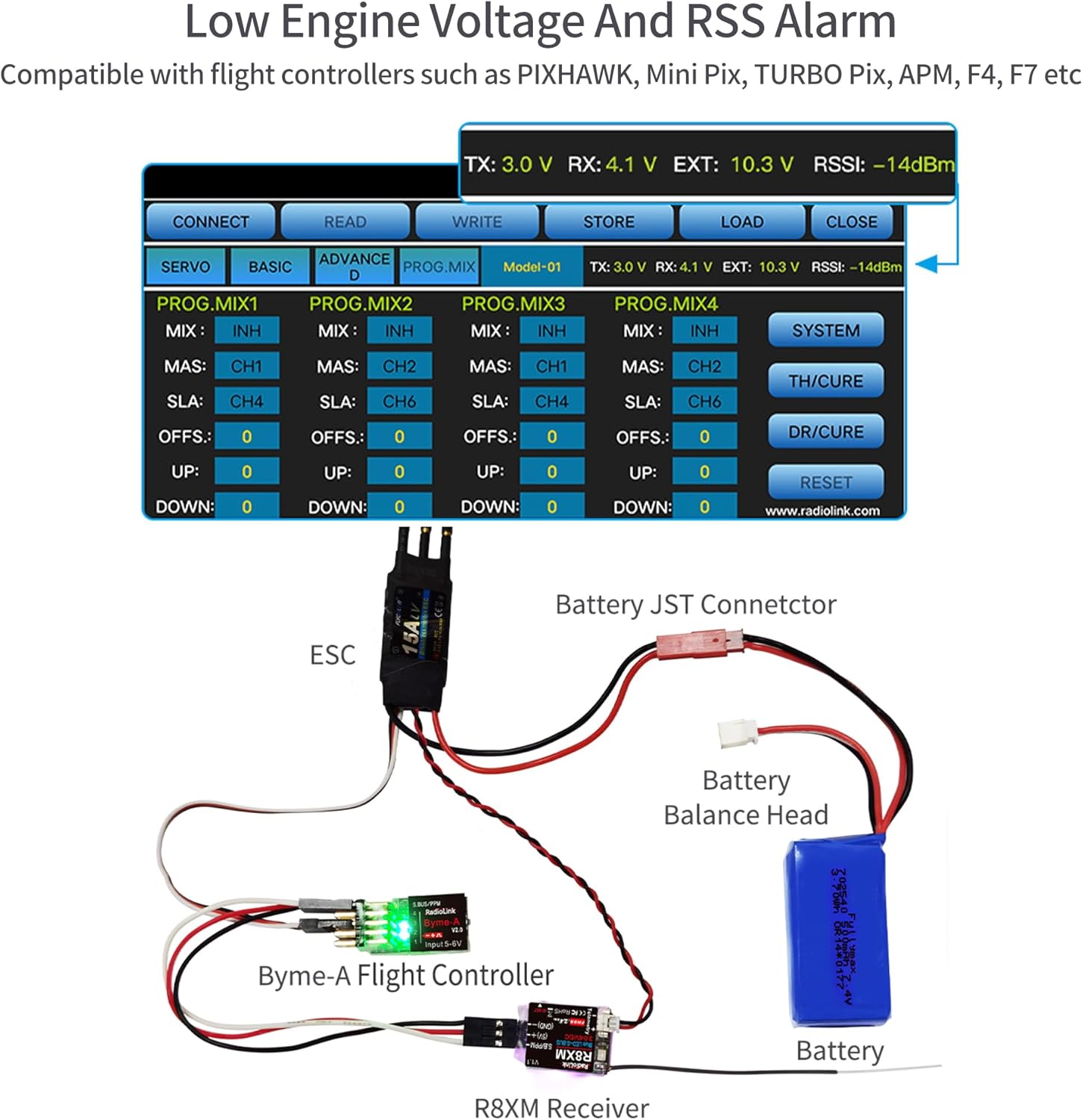

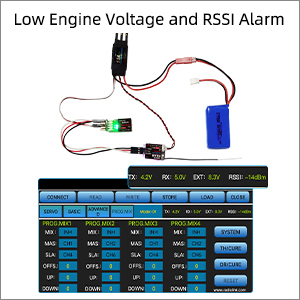

Low Engine Voltage and RSSI Alarm Receiver R8XM supports 2S-6S(7.2V-25.2V) model voltage telemetry that keeps the bait boat, racing drone, etc. will not out of control because of low voltage.Low RSSI alarm setting makes the bait boat will not out of control.The alarm setting could be set up through T8S&T8FB’s APP

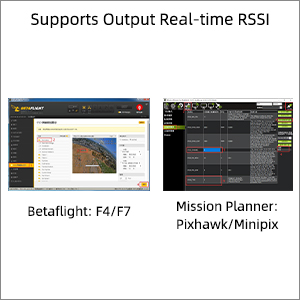

Supports Output Real-time RSSI Supports output RSSI value from receiver to FPV when the transmitter is T8S/T8FB and the flight controller is F4/F7.Supports output RSSI value from receiver to FPV when the transmitter is T8FB/T8S and the flight controller is Mini Pix/PIXHAWK.

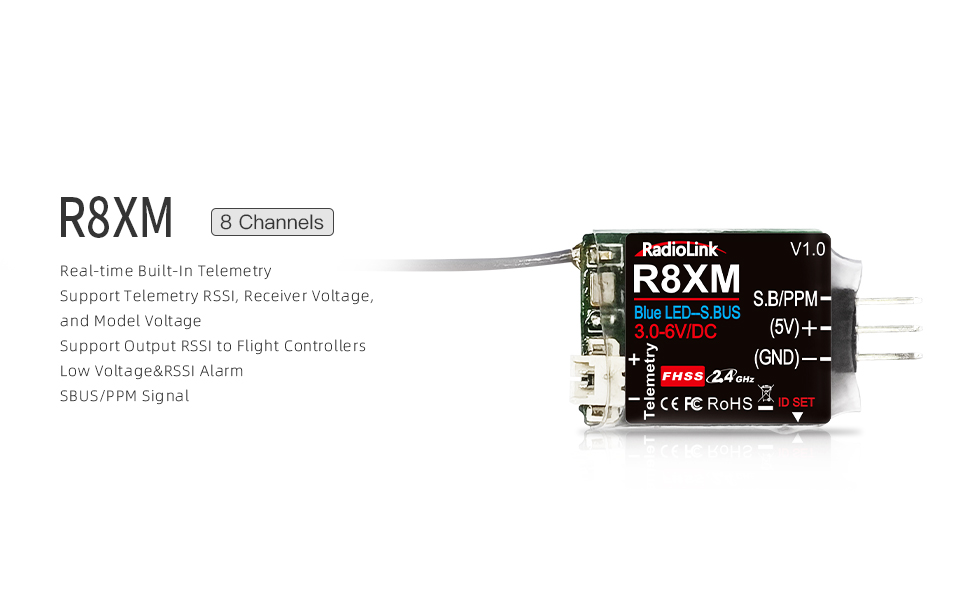

Real-time Telemetry

Real-time transmission of RSSI, receiver voltage, and model voltage.

The model voltage telemetry range is the same as the control range, which is 4000 meters in the air.

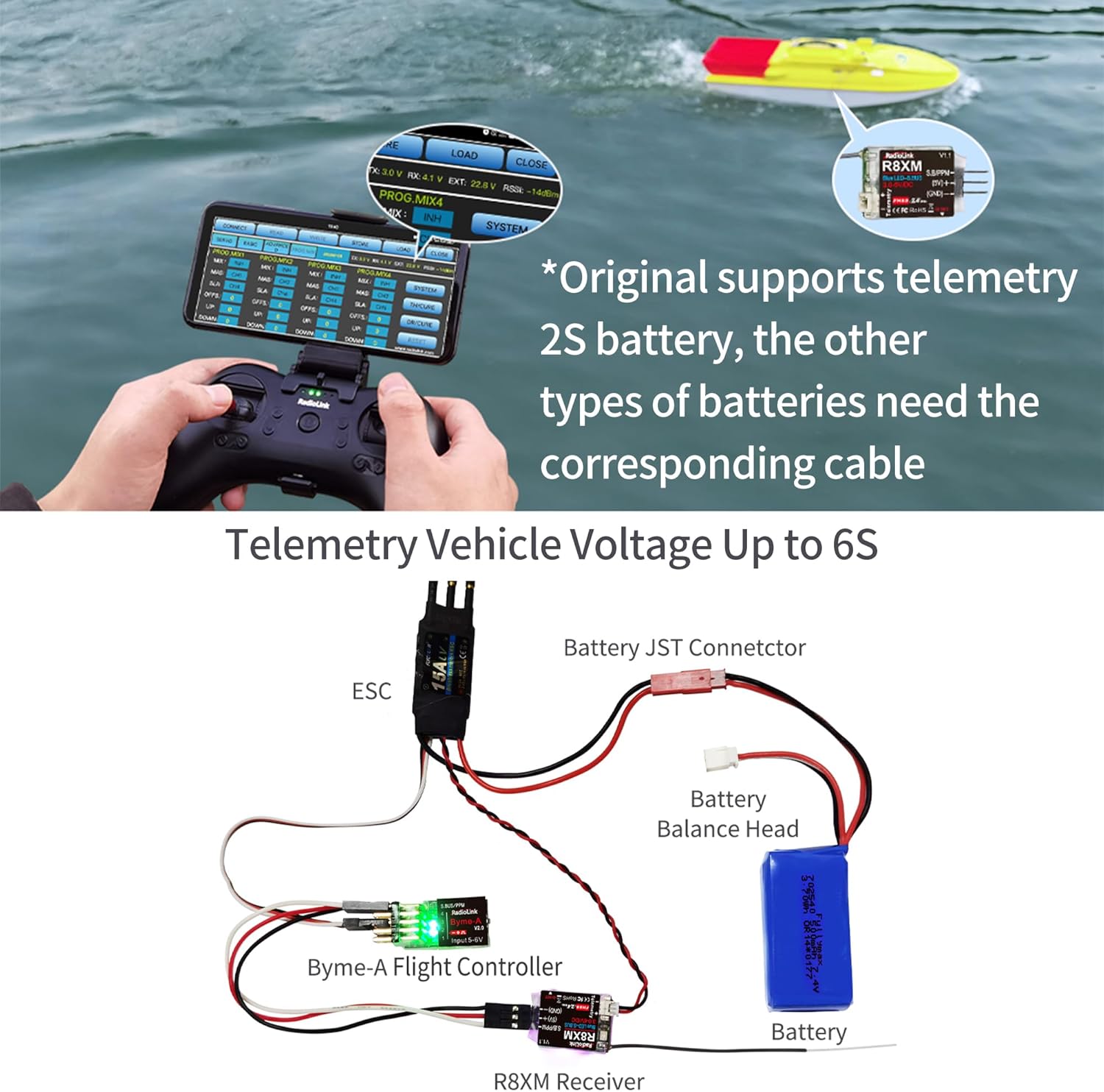

Notice: The telemetry function REQUIRES work with Flight Controller.Original support telemetry 2s battery, the bigger capacity batteries(3-6s) require the corresponding cable.

Specification

Model R8XM Dimension 22*17mm Weight 4g Antenna Length 90mm Channel Quantity 8 channels Operating Voltage 3-6V DC Operating Current 40mA±5mA@5V Signals SBUS/PPM Output Frequency 2.4GHz ISM band（2400MHz~2483.5MHz） Spread Spectrum FHSS, 67 channels pseudo-random frequency hopping Adaptable Models Racing drone/Rotary Wing/Fixed wing/Glider/Multicopter/Car/Boat/Robot (must work with flight controller) Control Distance 4000 meters (2.49Miles) in the air Transmission Return of signal, RSSI, receiver voltage Model Voltage Telemetry 2S-6S LiPo battery(7.4V-25.2V). Original support telemetry 2s battery, the bigger capacity batteries(3-6s) require the corresponding cable. Compatible Transmitter T8FB/T8S (must work with flight controller)

【Strong Anti-Interference】 – with frequency hopping spread spectrum (FHSS) and 67-channel pseudo-random algorithm to give R8XM with excellent anti-interference ability, highly constant, and the stable transmission signal.
【Two-Way Transmission Return】 – The telemetry feature can give you real-time important information like the model and receiver’s battery voltage and RSSI signal, avoiding battery over-discharge and equipment damage. Original support telemetry 𝟐𝐬 battery, the bigger capacity batteries(3-6s) require the corresponding cable.
【Alarm Setup】 – Receiver R8XM supports 2s-6s(7.4V-25.2V) battery voltage telemetry, with T8S and T8FB’s voltage alarm and RSSI alarm can avoid the fixed-wing, bait boat, racing drone out of control from a lack of power supply and bad signal quality.
【4000M Control Distance】 – Long-range control, stable remote control, and telemetry distance up to 2.5 miles(4000 meters) in the air. (The actual control distance depends on the environment.)
【Micro Size & Wide Compatibility】 – 0.14 oz and only 22*17 mm, lightweight and tiny size. Compatible transmitters: T8FB/T8S(must work with flight controller)
