Product description

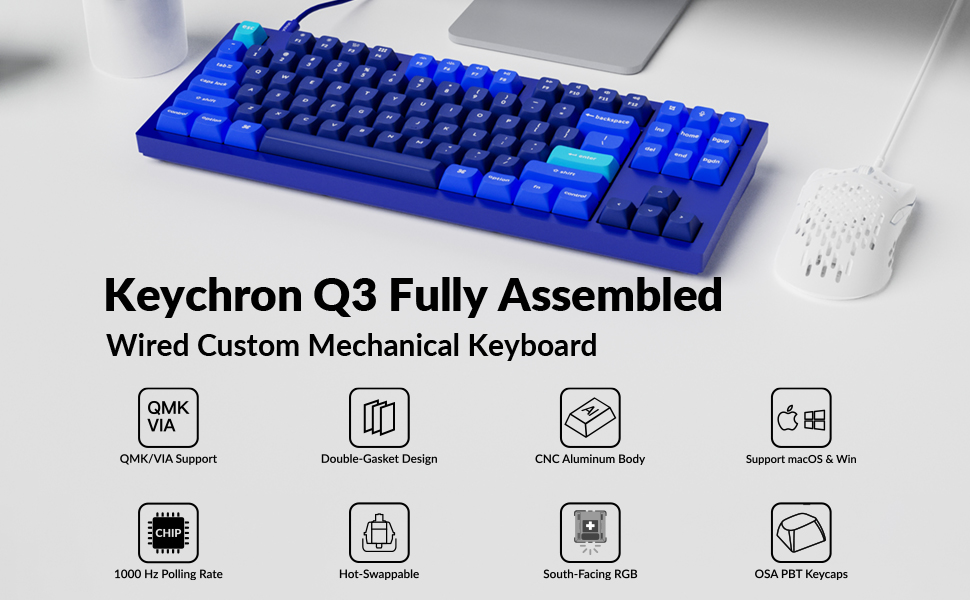

Keychron Q3 QMK/VIA Fully Assembled Custom Mechanical Keyboard

A fully customizable mechanical keyboard with out-of-the-box QMK/VIA support. Anyone can intuitively master any keyboard keys or macro commands through VIA software. The Q3 is designed to be able to assemble easily, so you can customize it the way you want.

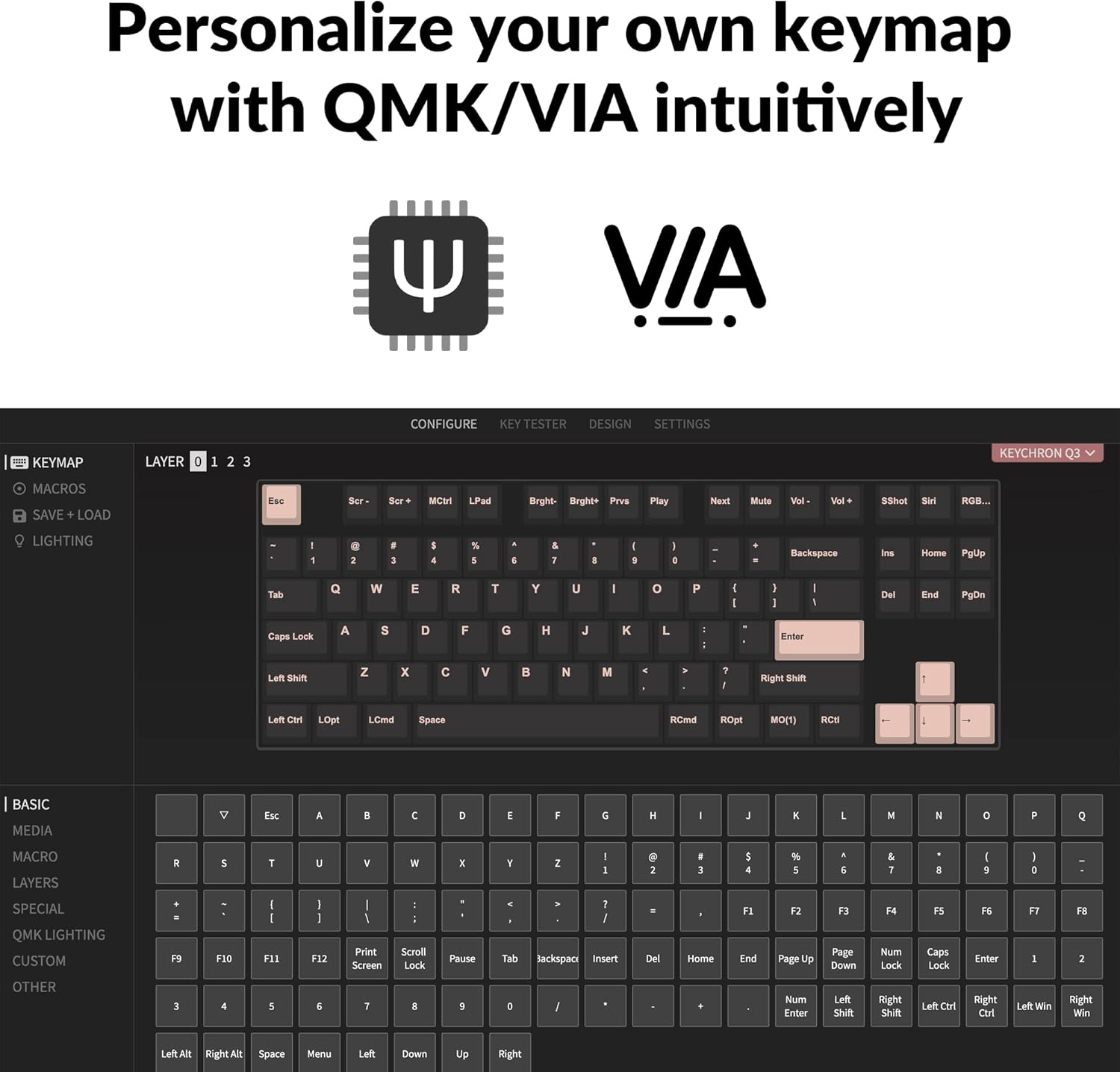

Master Any Keys or Macros with QMK/VIA

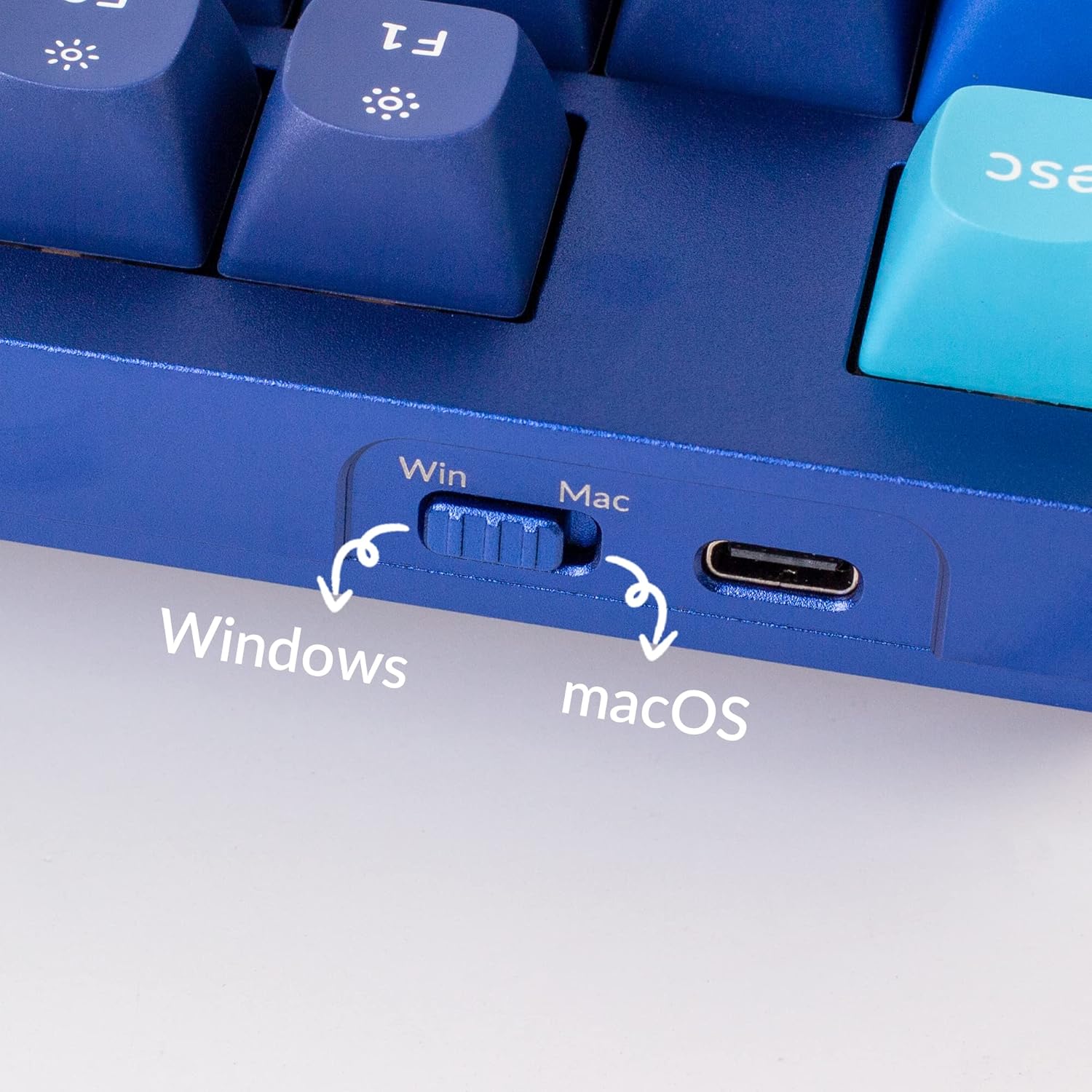

Compatibility with macOS, Windows and Linux

Simply connect the Q3 to your device with a cable, import the Q3 keymap JSON file into the VIA software, drag and drop your favorite keys or macro commands to remap any key you want on macOS, Windows, or Linux operating systems and save two different layouts on the keyboard, e.g.: create a macro command of a screenshot on macOS. Check our user guide or user manual for more instructions.

A brand new ultra-low-power Arm structure MCU which is powerful, and armed with 128K Flash will provide more flexibility for developers.

Keychron Q3 Highlights QMK & VIA Support Hot-Swappable Sockets For macOS, Windows & Linux Double-Gasket Design Full Aluminum Body OSA Profile Double-shot PBT Keycaps Pre-lubed Gateron G Pro Brown Switch Pre-installed Screw-In PCB Stabilizers

Full Aluminum Tenkeyless Layout

Crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make a solid metal art on the desk that is the Q3.

Double-Gasket Design

Allows the Q3 keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound. We added silicone pads between the top and bottom cases besides gaskets on the plates to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals.

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Q3 also supports third-party stabilizers, including Cherry or Durock.

Hot-swappable

The PCB socket of Q3 is compatible with almost all the MX style 3pin and 5pin mechanical switches on the market(including Cherry, Gateron, Kailh, Panda, etc.) without soldering required.

Pre-lubed Gateron G Pro Brown Switch

The pre-installed Gateron G Pro mechanical switch given that 2 ±0.6mm pre-travel and 55 ±15gf operating force, features a nice tactile feel while satisfying your finger with up to 50 million keystroke lifespan.

South-facing RGB LED Lights

Designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference with other OEM or Cherry-profile alternative keycaps.

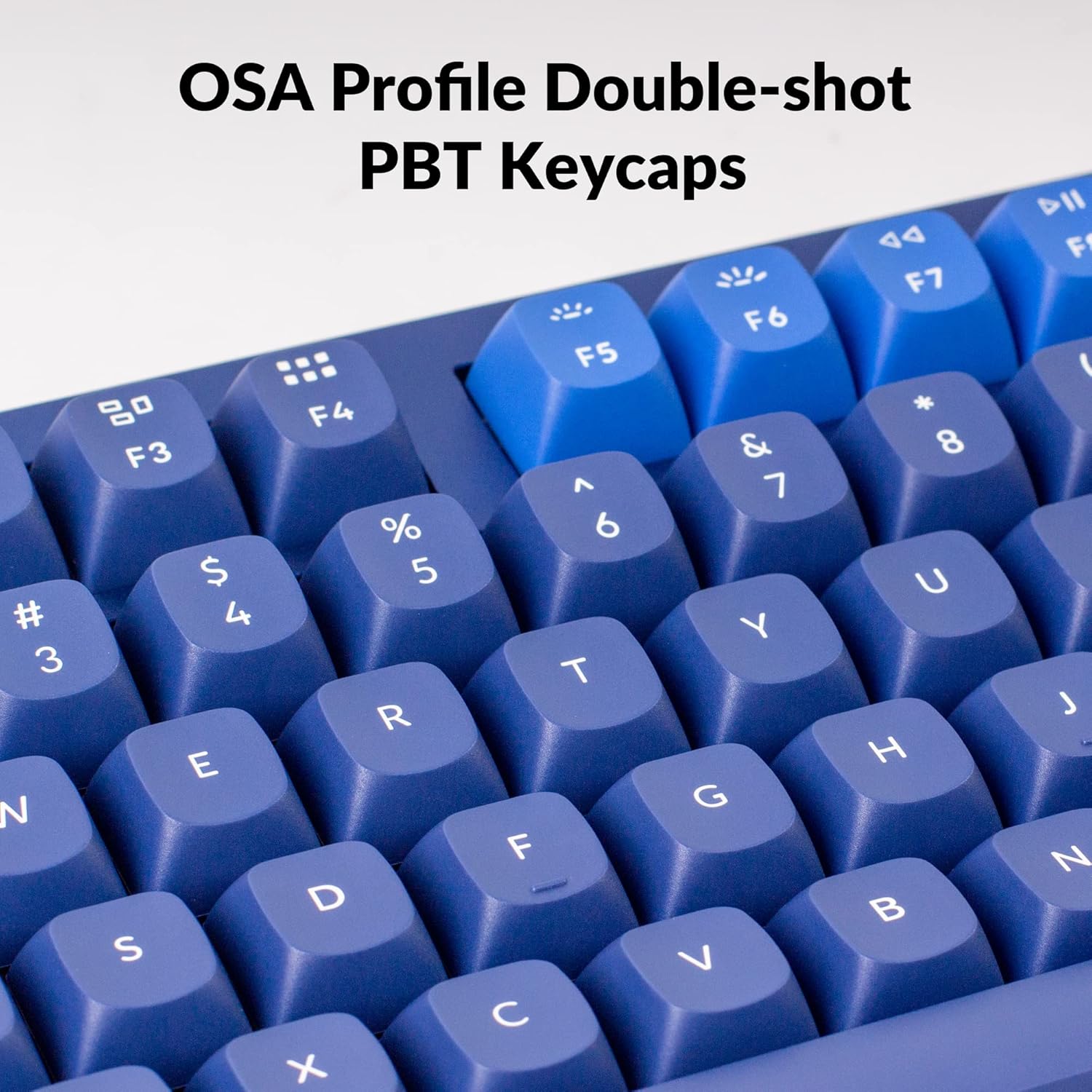

OSA Profile Double-shot PBT Keycaps

Equipped the new double-shot PBT keycaps with ”OSA profile” (OEM spherical angled) will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

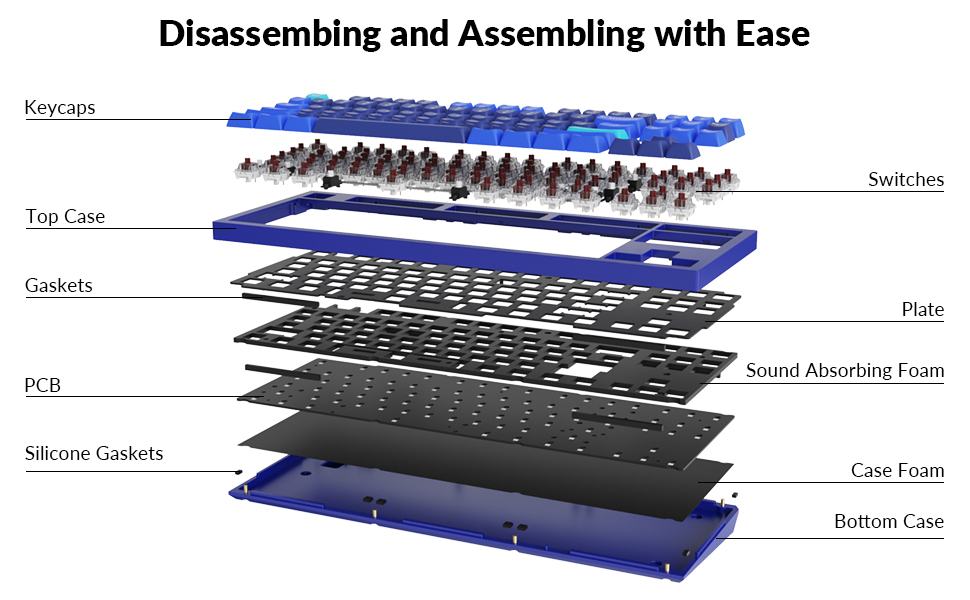

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component easily assembled. Therefore, you can customize and adjust each component you want.

Please Note: All tools are placed on bottom of the box.

Specification

Body Material Full CNC machined aluminum Plate Material Steel Keycaps Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape) MCU Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash) Polling Rate 1000 Hz Stabilizers Screw-in PCB stabs Connectivity Type-C cable + Type-A to Type-C adapter Backlight South-facing RGB LED Switches Gateron G Pro Brown Switches Pre-installed; Hot-swappable (5 pin & 3 pin) Weight 4.41 ± 0.02lb（2000 ± 10g） Dimension 14.37 * 5.39 * 1.37inches（365.1 * 137 * 35mm）

Fully Assembled Keychron Q3 Customizable Mechanical Keyboard Knob Version: With the classic tenkeyless layout, full aluminum CNC machined body, double-gasket design, and QMK/VIA support, the Q3 is designed for premium typing comfort and endless possibility on Mac, Windows and Linux.
QMK and VIA Support: Designed to enhance your creative workflow, you can easily personalize your own keymap to remap each key and create macros on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, and more.
Double Gasket Design: In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
Hot-swappable: Pre-installed the pre-lubed Gateron G Pro mechanical brown switch providing unrivaled linear responsiveness with up to 50 million keystroke lifespan. The hot-swappable sockets are mounted on the PCB and compatible with almost all the MX style 3pin and 5pin mechanical switches on the market (including Gateron, Cherry, Kailh, etc.), you can install or change the switches without soldering. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth with the new screw-In PCB stabilizers.
Easily Assembled: Designed every component easily assembled, you can customize and adjust each component you want. Note: The Q3 even supports third-party stabilizers, including Cherry or Durock.
