Product description

Keychron Q15 Max

Introducing the Keychron Q15 Max, a full metal ortholinear wireless QMK customized mechanical keyboard that features equally sized keys and a compact gridded layout. It is designed with two programmable knobs, a split-spacebar design, and supports 2.4G wireless, Bluetooth 5.1 connectivity.

Ultimate Typing Experience

Elevate the typing experience with a combination of premium acoustic foams such as IXPE, PET, and Latex. Each keystroke becomes enjoyable, making every tap a delight for the senses. It is assemble easily you can customize and adjust each component with ease to create your ultimate typing experience.

Ortholinear Layout Design

Ortholinear keyboards is a compact yet functional keyboard with equally sized keys that are arranged in a grid pattern. This layout can improve comfort, speed, and accuracy by reducing finger movement and strain for a faster and more efficient typing experience.

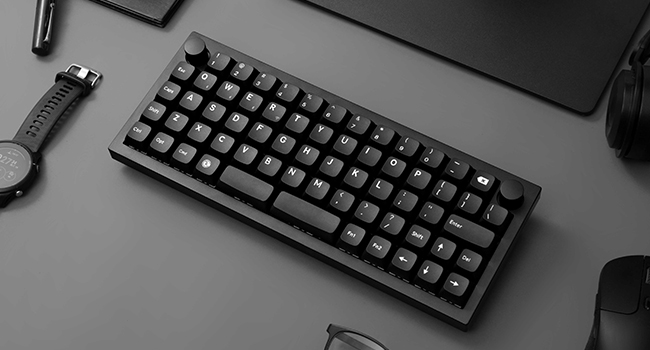

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q15 Max via Bluetooth 5.1 to three devices.

An Epic Core Inside The Keyboard

A powerful ARM Cortex-M4 chip (MCU) equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on 2.4 GHz and wired modes (90 Hz on Bluetooth mode), which makes the latency hardly noticeable even in competitive games.

A Refined Piece Of Metal Art

The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q15 Max.

Program with QMK & Launcher

Endless possibilities for a fluid workflow thanks to its ability to remap any key, and create macro commands, shortcuts, or key combinations through the Keychron Launcher Web App.

Double-Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals.

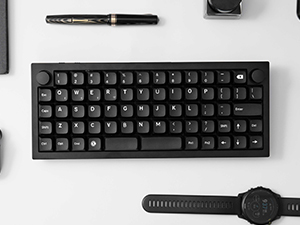

Suitable for All Devices

The Q15 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems.

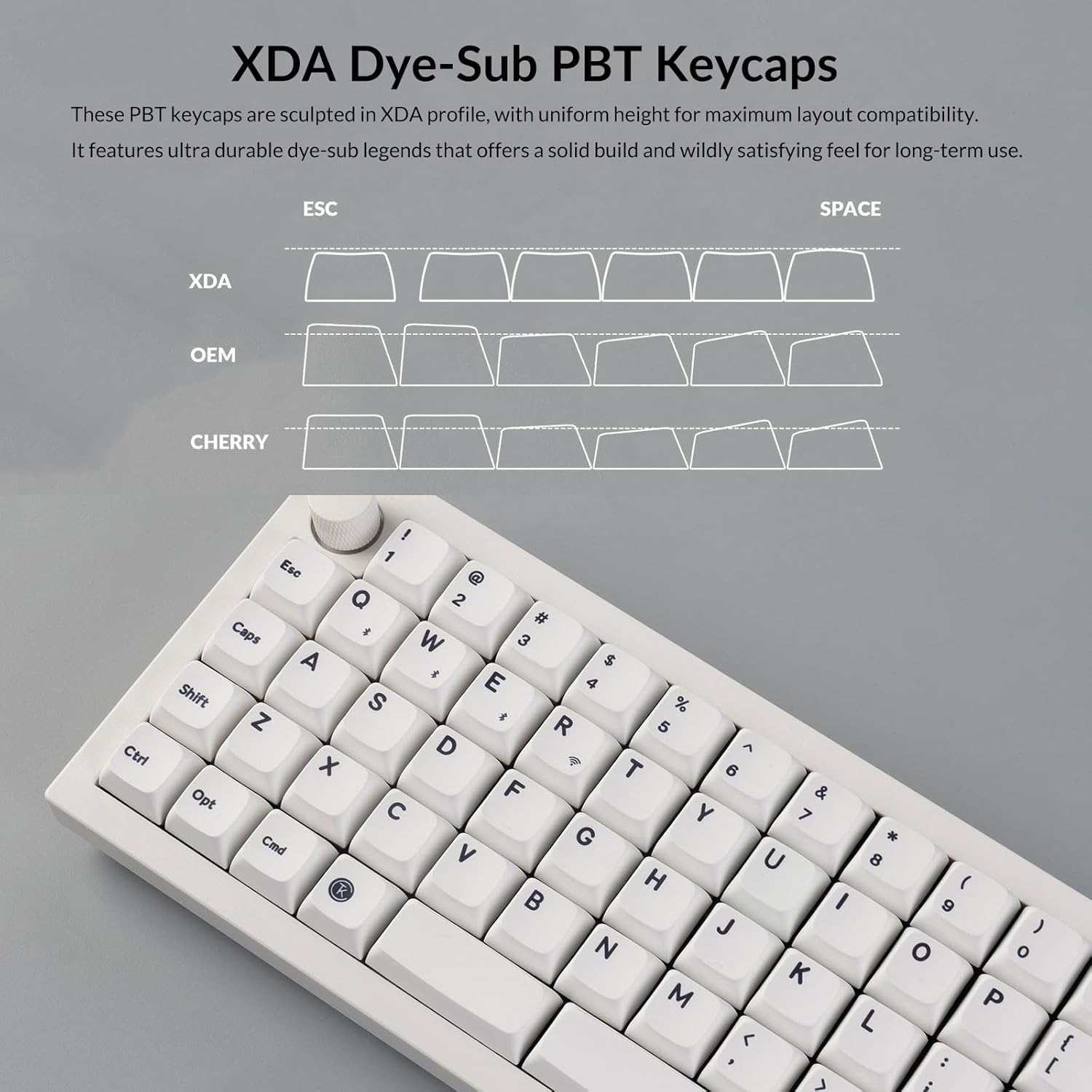

XDA Dye-Sub PBT Keycaps

These PBT keycaps are sculpted in XDA profile, with uniform height for maximum layout compatibility. It features ultra durable dye-sub legends.

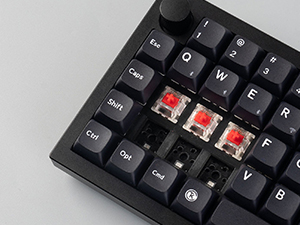

Hot-Swappable

You can hot-swap every switch on the Q15 Max with almost all of the 3pin & 5pin MX style mechanical switches on the market without soldering required.

South-Facing RGB

Comes with 22 types of RGB backlight settings. You can further fine-tune the RGB lighting, or even remap these keys with Keychron Launcher web app.

Keychron Q15 Max

Specifications

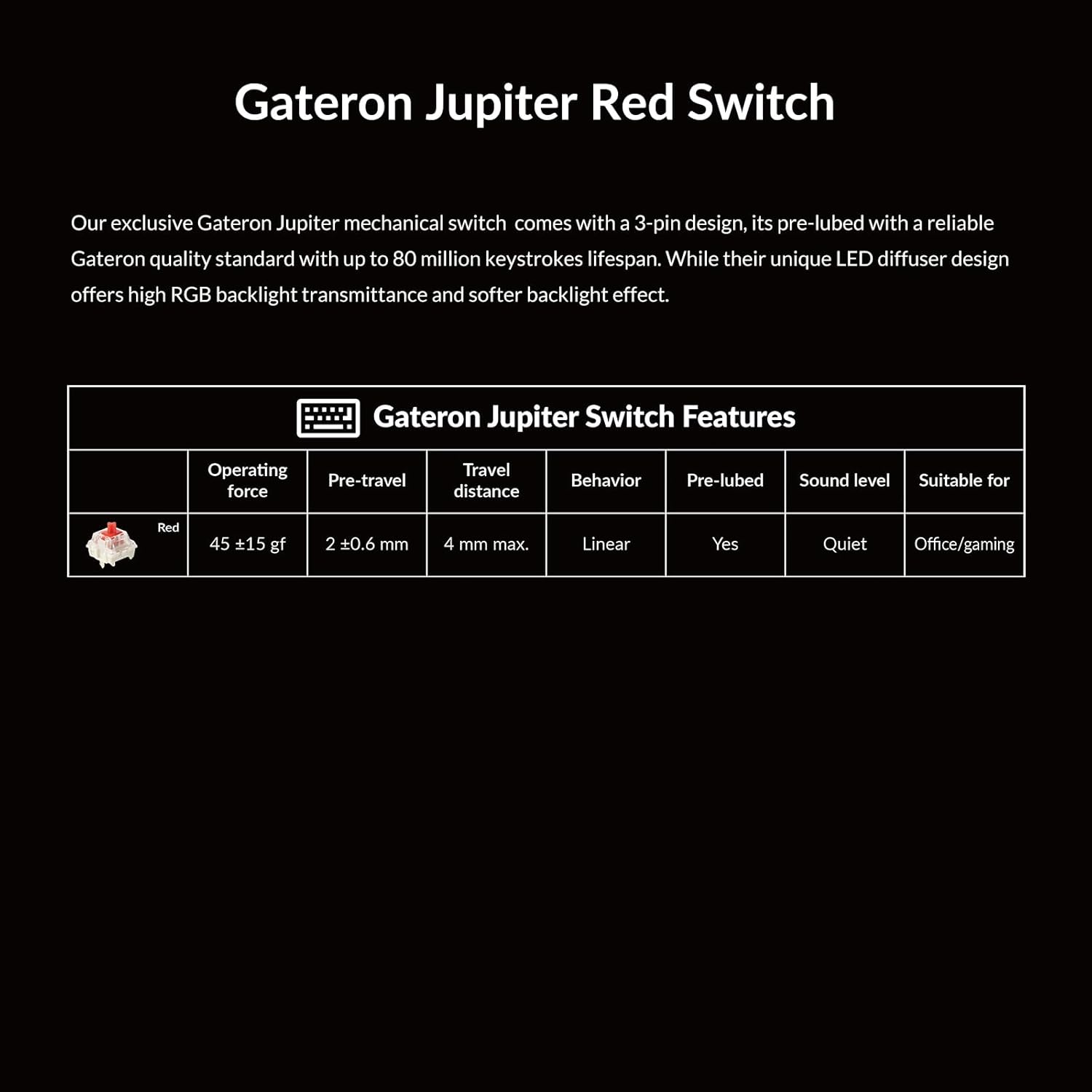

Width: 114 mm; Length: 283.05 mm; Front Height: 21.35 mm(without keycaps); Back Height: 34.49 mm (without keycaps); Feet Height: 2.71 mm; Angle: 7°; Weight: 1232 g ± 10 g; Body Material: Aluminum; Plate Material: PC; Keycap: XDA Dye-Sub PBT keycaps, not shine-through; Switch: Gateron Jupiter; Stabilizer: Screw-in PCB stabilizer; Backlight: South-facing RGB LED; Hot-swappable: Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc.; MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash); Polling Rate: 1000 Hz (2.4 GHz & wired) / 90 Hz (Bluetooth); N-Key Rollover (NKRO): Yes for both wireless and wired modes; Battery: 4000 mAh Rechargeable li-polymer battery; Wireless Working Time (Backlit off): Up to 180 hours (Lab test result may vary by actual use); Wireless Working Time (RGB): Up to 100 hours (Lowest brightness); Bluetooth Version: 5.1; Compatible System: macOS/Windows/Linux; Connectivity: 2.4 GHz / Bluetooth / Type-C wired; Bluetooth Device Name: Keychron Q15 Max; Operating Environment: -10 to 50℃.

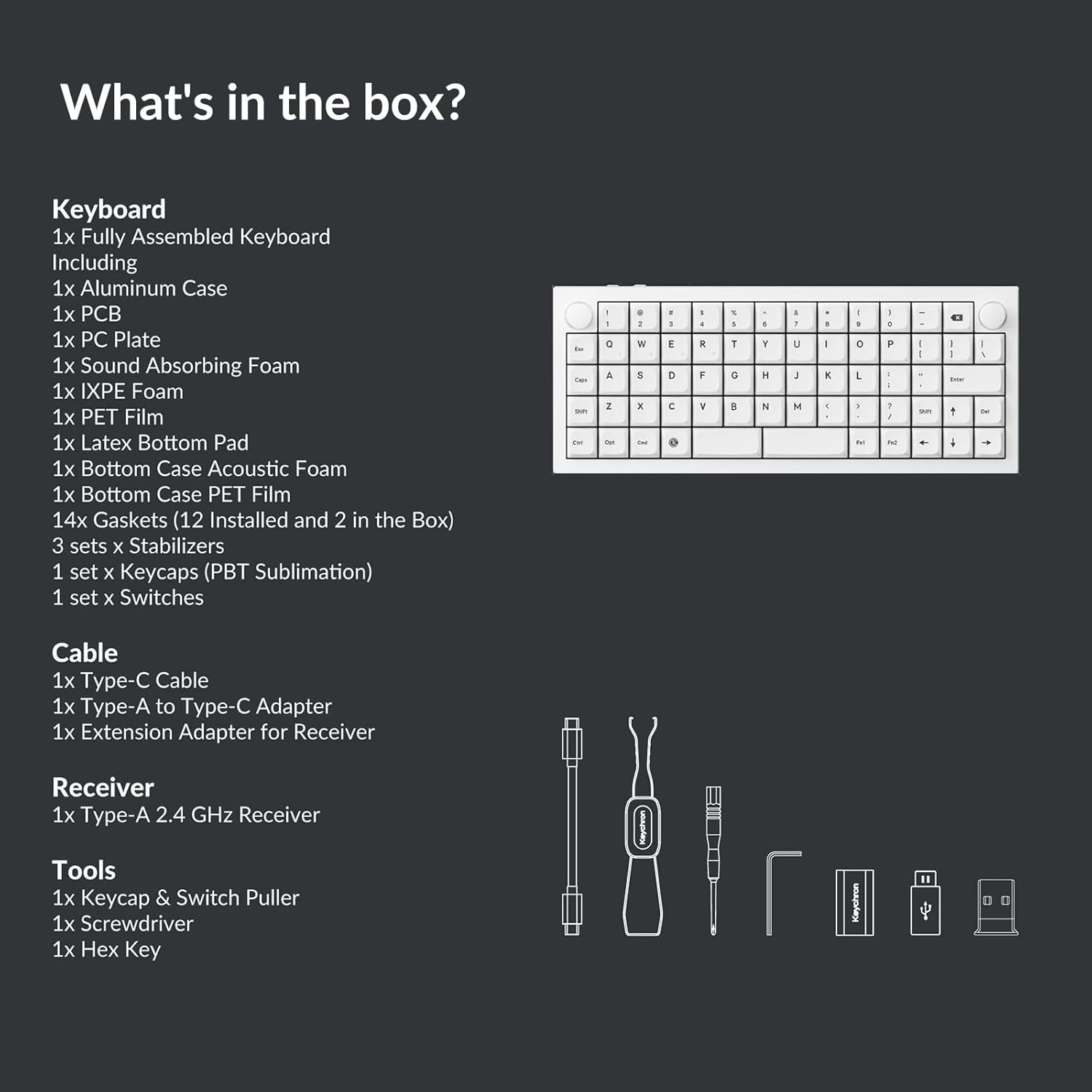

What’s in the box?

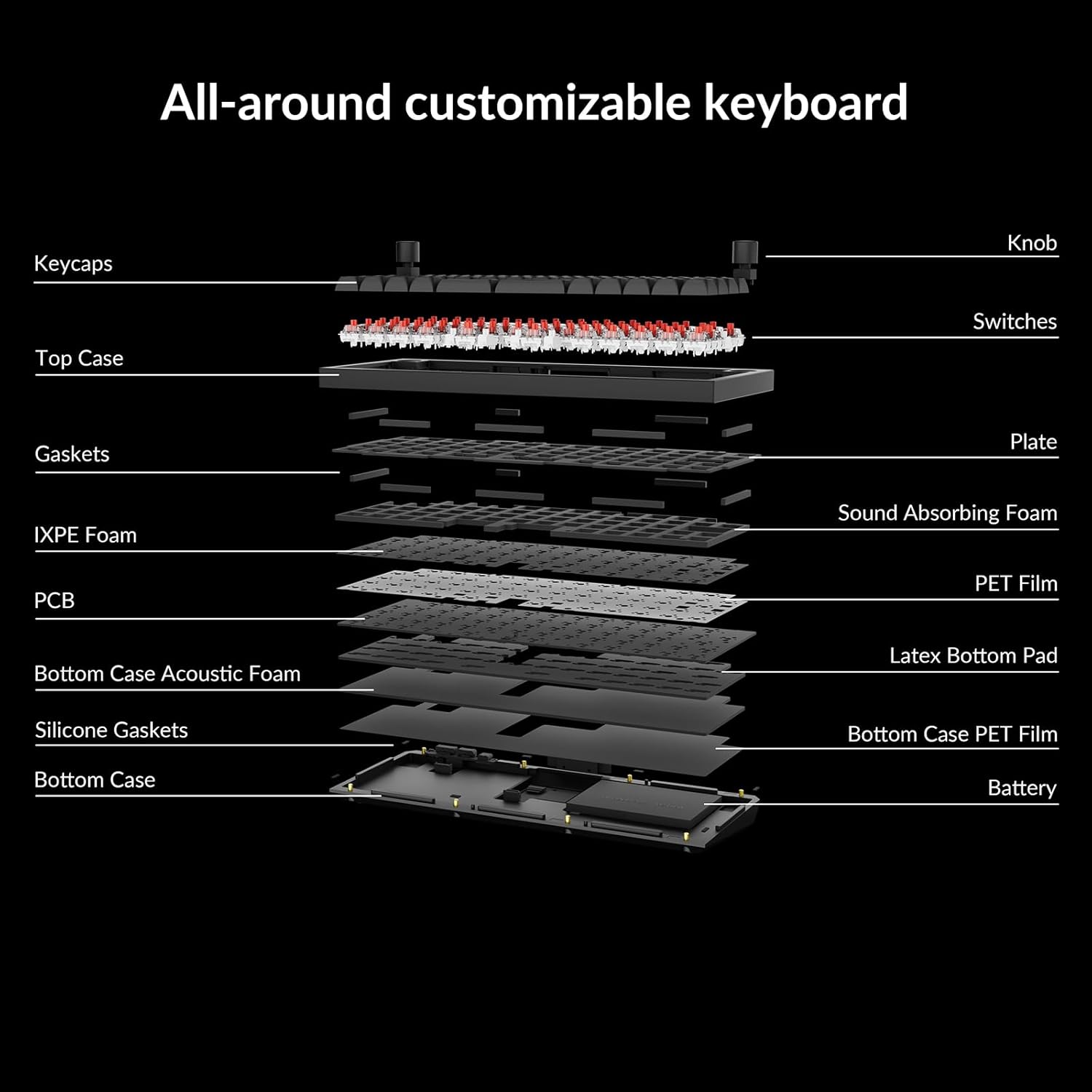

Keyboard: 1x Fully Assembled Keyboard. Including 1x Aluminum Case; 1x PCB; 1x PC Plate; 1x Sound Absorbing Foam; 1x IXPE Foam; 1x PET Film; 1x Latex Bottom Pad; 1x Bottom Case Acoustic Foam; 1x Bottom Case PET Film; 14x Gaskets (12 Installed and 2 in the Box); 3 sets x Stabilizers; 1 set x Keycaps (PBT Sublimation); 1 set x SwitchesCable: 1x Type-C Cable; 1x Type-A to Type-C Adapter; 1x Extension Adapter for ReceiverReceiver: 1x Type-A 2.4 GHz ReceiverTools: 1x Keycap & Switch Puller; 1x Screwdriver; 1x Hex Key

Ortholinear Layout Desig. Ortholinear keyboards is a compact yet functional keyboard with equally sized keys that are arranged in a grid pattern. This layout can improve comfort, speed, and accuracy by reducing finger movement and strain for a faster and more efficient typing experience
2.4 GHz & Bluetooth Connection. Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q15 Max via Bluetooth 5.1 to three devices
A Refined Piece Of Metal Art. The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q15 Max
Significantly Enhanced Acoustic Foams. Elevate the typing experience with a combination of premium acoustic foams such as IXPE, PET, and Latex. Each keystroke becomes enjoyable, making every tap a delight for the senses. We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience
An Epic Core Inside The Keyboard. A powerful ARM Cortex-M4 chip (MCU) equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on 2.4 GHz and wired modes (90 Hz on Bluetooth mode), which makes the latency hardly noticeable even in competitive games
