Product description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

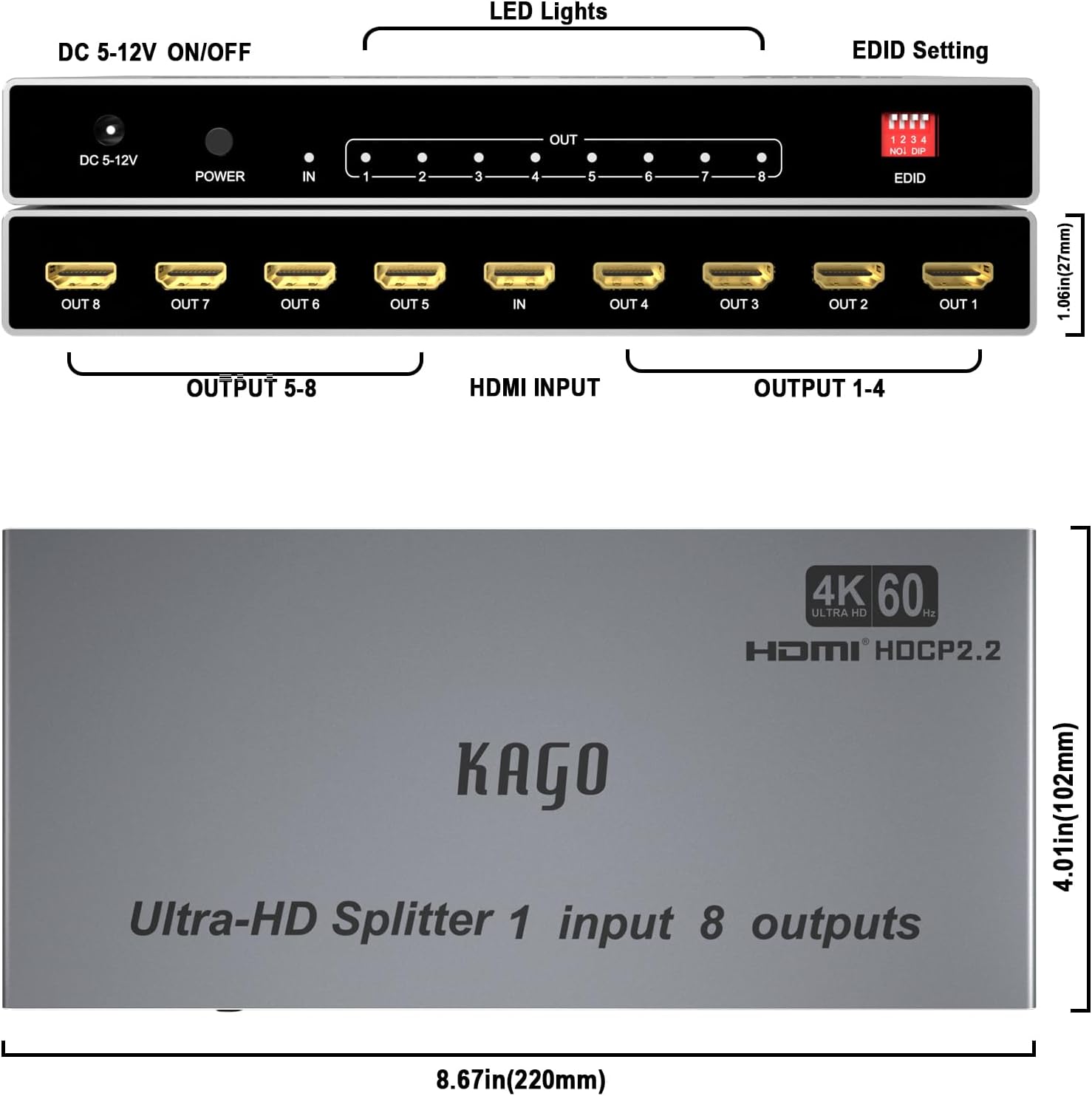

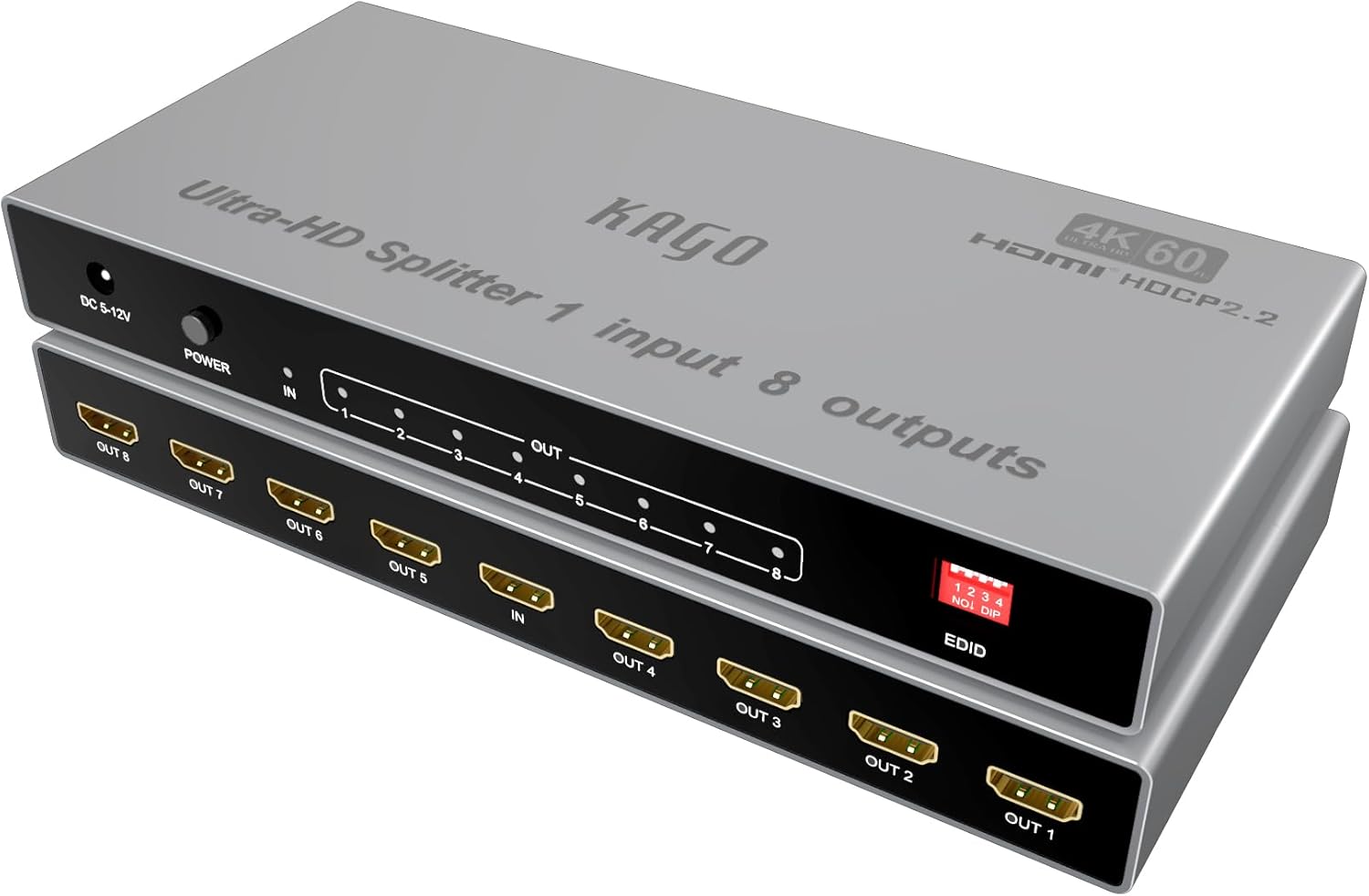

4K 60hz hdmi splitter 1 in 8 out — Front

This KAGO HDMI Splitter can scan the outports automatically. LED lights will indicate working equipment. This switcher uses the latest chipset to ensure flicker-free switching and high-quality images. with EDID setting, the application of the splitter can be expanded to suit different requirements.

8 port hdmi splitter — Back

It is powered by a DC adapter (5-12V 2A). 8 outports and 1 inports are hdmi 2.0, support 4K@60Hz HDR HDCP etc. HDMI 2.0 is widely used in smart TVs and monitors, and can be backward compatible. It also supports game consoles such as PS5/4/3 XBOX Switch etc.

HDMI Version Supports up to 4K(3840*2160/60Hz) HDMI 2.0 HDCP 2.2 Digital Audio DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD Digital Video Support 8-channel LPCM,24bit/192khz video. support 3D images; full HD Blu-Ray; HD DVD 24bit/deep color/30bit/36bit/48bit HDMI input line length 1-15M (33-495ft) 4kx2k (<5m AWG24 HDMI Standard) HDMI output line length 1-20M (33-650ft) 4kx2k (<5m AWG24 HDMI Standard) HDMI Cable HDMI V2.0 (19pin + 1 pin) Maximum Bandwidth 18Gbps Max operating current 2A power input 12V/2A Operating Temperature range -15 – 55 c (5 -90%RH) Size (LxWxH) 220 x 102 x 27 mm Weight 526g

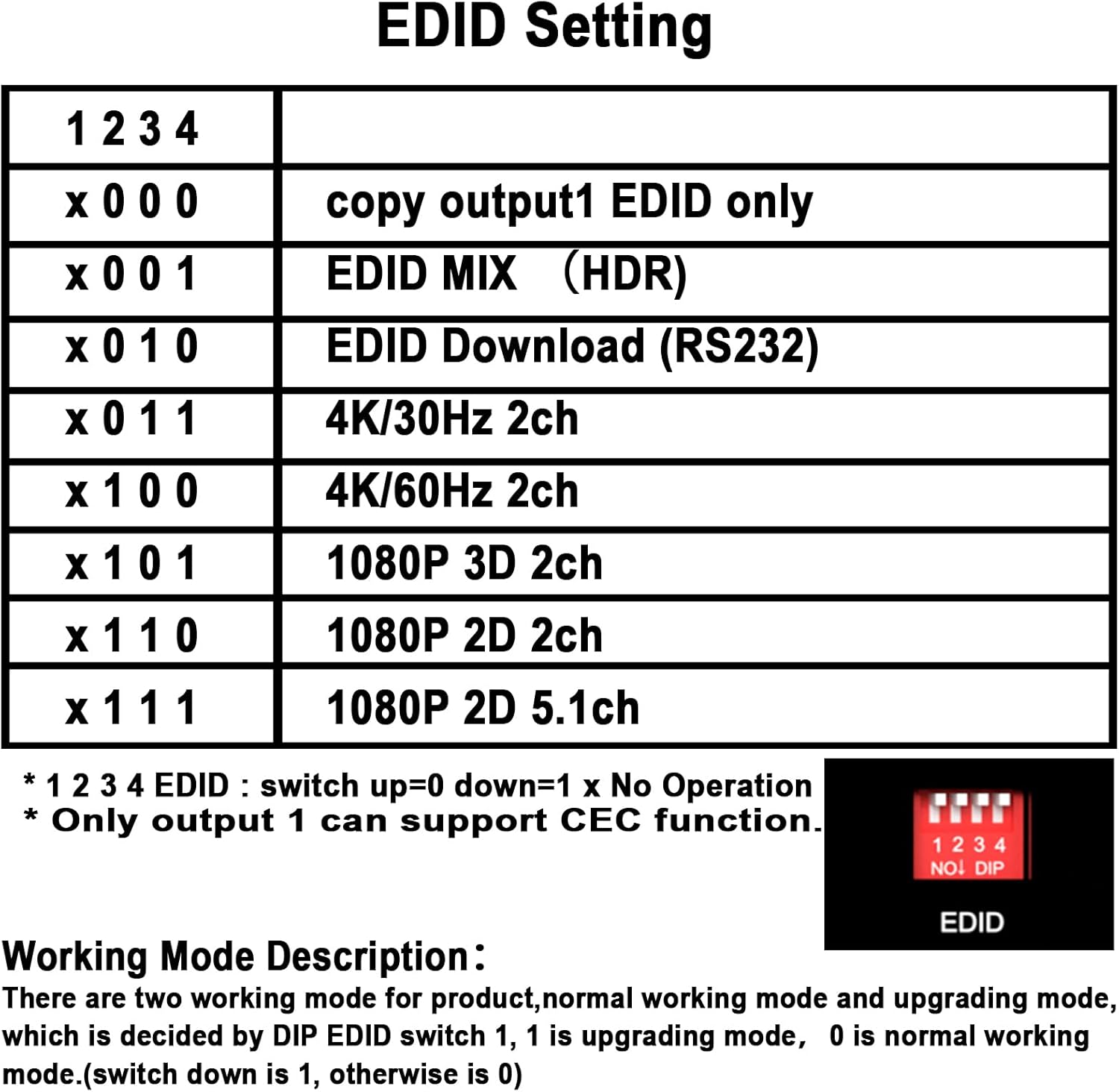

EDID Setting Application

1 Conference room

2 Video Room

3 sports events

4 Enjoy Sports

4K HDMI Splitter

Add to Cart

Customer Reviews

4.5 out of 5 stars 33

4.2 out of 5 stars 64

4.2 out of 5 stars 155

4.5 out of 5 stars 33

Price

$64.99$64.99

$29.99$29.99

$169.99$169.99

$9.99$9.99

$49.99$49.99

4K 60Hz

✔

✘

HDMI Version

HDMI 2.0 HDCP 2.2

HDMI 1.4 HDCP

Ports

Resolution

3840*2160/60Hz

3840*2160/30Hz

EDID Support

✔

HDMI Splitter 1 In 8 Out – 1×8 HDMI splitter distributes audio and video signal from a single source to 8 HDMI displays simultaneously. It works with all HDMI-integrated devices, such as PCs, laptops, fire sticks, game consoles (Xbox 360, Xbox One, PS3, PS4/5), projectors, TV receivers, televisions , VR and others. Supports all common audio formats.
High Resolutions – Supports high resolutions up to 4K(3840*2160/60Hz), including 2160P/1080P/ 1080i/ 720p/ 576p/ 576i/ 480P/ 480i .Support 8-channel LPCM,24bit/192khz video.support 3D images,Adopting Taiwan’s most advanced video chip to ensure the perfect reflection of video and sound
Digital Audio Format – HDMI 2.0 Blu-ray DVD ,HD-DVD. It is applicable to source device and high definition display terminal device such as Blu-ray Players and HDTV which have HDMI interfaces or digital interfaces.Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

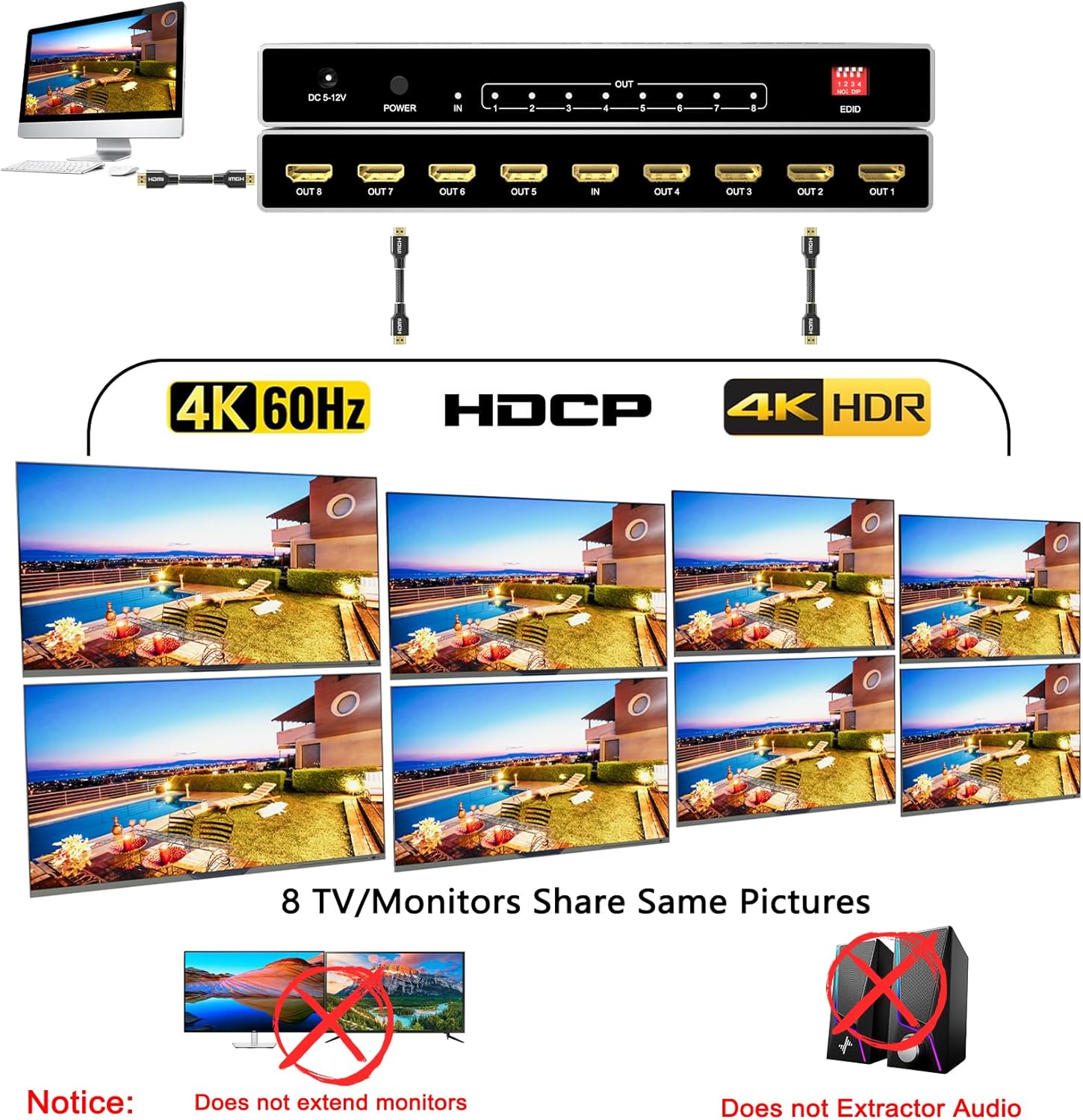

Plug&Play – Connects 8 HDMI TVs at the same time to the same video source. It will output the same resolution to all displays.NOTE: This HDMI splitter will NOT Extend Monitors to create dual or Multi screen mode
HDMI Cable – the length of the signal source input cable can be 1-10M(32ft),output cable can be 1-15M(48ft).19+1AWG26 pin standard HDMI Cable is recommended
Perfect for Bars, Restaurants, Churches, Gyms, Classroom,Office or any other spaces needing to duplicate one display up to 8 screens,1 Year Full Warranty with KAGO Support. Includes: HDMI Splitter 1 in 8 out, Power Supply, Manual
