Product description

HDSUNWSTD 196ft ( 60m ) HDMI Extender

HDSUNWSTD HDMI to CAT5e/6 Extender – 60m extends HDMI audio / video signals over one cost effective Ethernet CAT5e or CAT6 cable, while maintaining signal strength and superior audio and video quality.

It supports up to 1080p resolution and extends transmission distances up to 196ft ( 60m ).

Incompatible devices：do not compatible sony , blackmagic and 4k device ,Does not support working with other converter products

Feather

196FT / 60M HDMI SINGLE NETWORK CABLE EXTENSION

How to solve the problem that the distance is too long, the HDMI cable cannot connect directly?

HDSUNWSTD HDMI EXTENDER over single CAT5E / CAT6 is here

Length of Cat6/5E cable between RX and TX: 196ft ( 60m )

Easier Setup

Designed with HDMI male on the transmitter and receiver, no HDMI cable required.

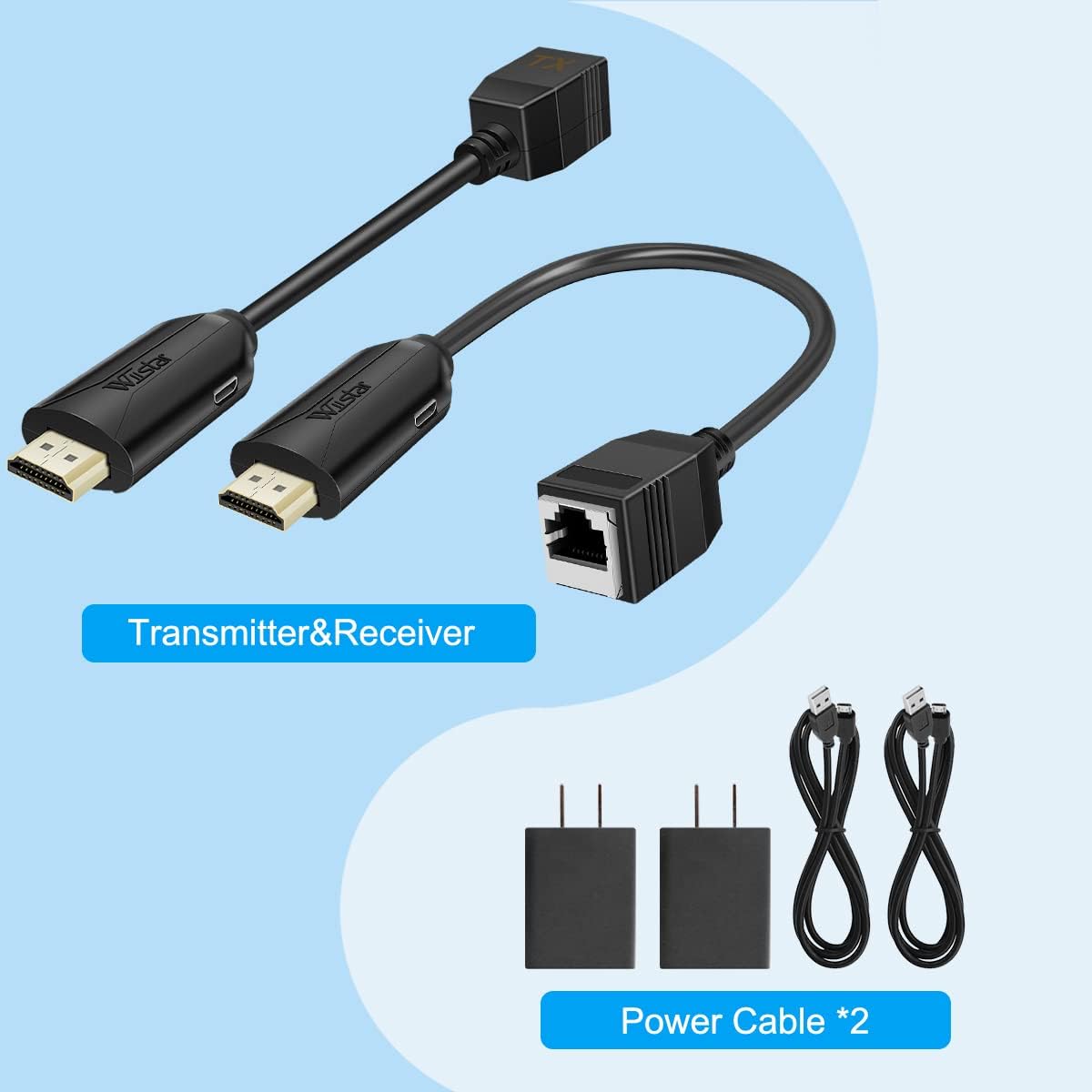

What’s in the package

What’s in the package:

1x Transmitter (TX)

1x Receiver (RX)

2x US power Adapter

1x User Manual

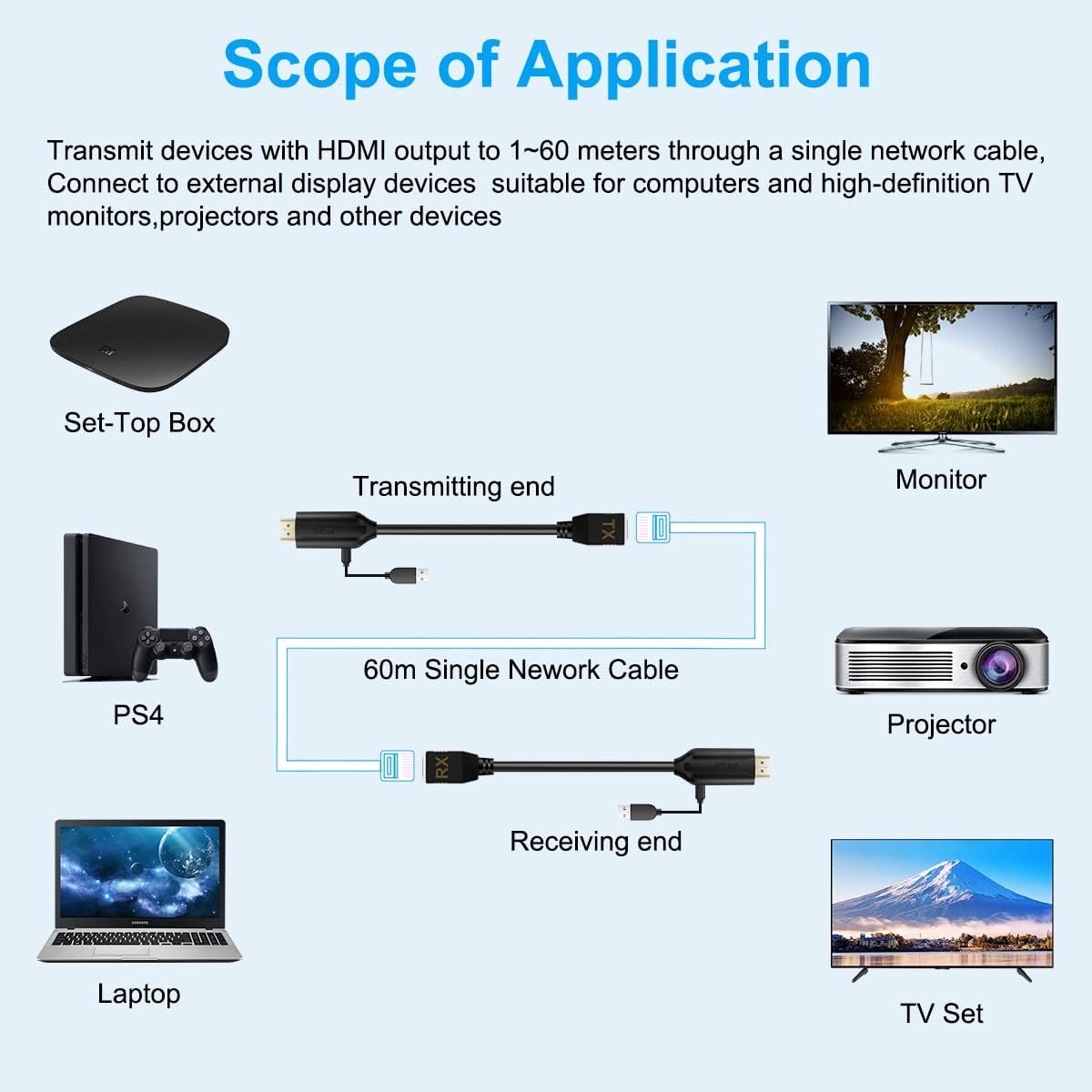

HOW TO WORK? EASY AND CONVENIENT

1.Connect a HDMI source device ( PC, DVD player, PS4, PS5, TV box ) to TX Extender

2.Connect a HD TV, projector or monitor to RX Extender

3.Connect a single cat-5e / 6 ( recommended ) cable up to 60 meters between TX and RX Extender.

4.Please connect 5V power supply to a power outlet. NOTE: To more stable, Power is required at both ends of the receiver and transmitter.

Before buy this device ,please read Our hdmi extender compatible of cable and device .

1.It do not support HDCP 1.3 , 1.4. It support HDCP 1.2 We only recommend use HDCP 1.2 device

2.It do not support sony and blackmagic device name ,Please do not use this two kind of device .

3.It only support Cat5e cable up to 50m; Cat6 cable up to 60m.It do not support cat5 ,cat 6a cat7 or others cat cable .For better data transmission of the product, we only recommenduse cat5e and cat 6 cable.Please do not use others cat cable .

4.Do not support POE,it must connect two power adapter

Before buy this device ,please read these below note:

1.the use of poor quality cables will affect the extended distance and !

2.Do not use HDCP 1.3/1.4 device，Do not use for sony and blackmagic device

3.Please use Cat5e and cat 6 cable,Do not use other kind of cat cable

4.TX and RX must connect the power adapter

5.It do not support Bi-Directional. RX can not treat as TX . TX can not treat as RX.

TX’s hdmi port connect the signal source(dvd and so on ) ,RX’s HDMI port connect the display(TV) ,Please do not use the opposite

6.It suppport 3D 1080P HDMI 1.3,do not support 4k/HDMI 1.4 ,Please set your device to below 1080p@60hz

7.TX/RX cable length 22cm,If 22cm cannot meet your needs,please buy female extend .

8.It needs to be used in pairs.

After Sales:

1.If you receive the wrong or bad product ,. We deeply apologize for these unhappy thing happened ,if you come up against these problem .

please send us picture .So that we can check which link went wrong, we will make corrections. Prevent similar issues from occurring ,also we will take responsibility and resolve this issue to you .The solution will satisfy the customer

2.If it’s our problem, we will take responsibility. Please assured to purchase this extender

【Audio & video Synchronous】 Transmission Powerful intelligent chip that transmits the audio and video signals of the HDMI interface to the far end through a network cable to achieve audio and video synchronous output, giving you an audiovisual feast.
【FULL HD 1080P, TRANSMISSION 196 FT】 Supports resolution up to 1080P@60Hz and 3D visual enjoyment. hdmi extender over cat5e cat6 cable distance max up to 196Ft (60m), stable, clear and smooth. Compliance with HDMI 1.3 standard. (We recommend using high performance Cat5e/Cat6 cable to ensure reliable performance).
【Install Easily No Driver Required】 Our HDMI extender adapter is male hdmi and female rj45 port. You do not extral buy HDMI cable . it can supply for long distance transmission of high definition signal, easy to install and just plug and play.

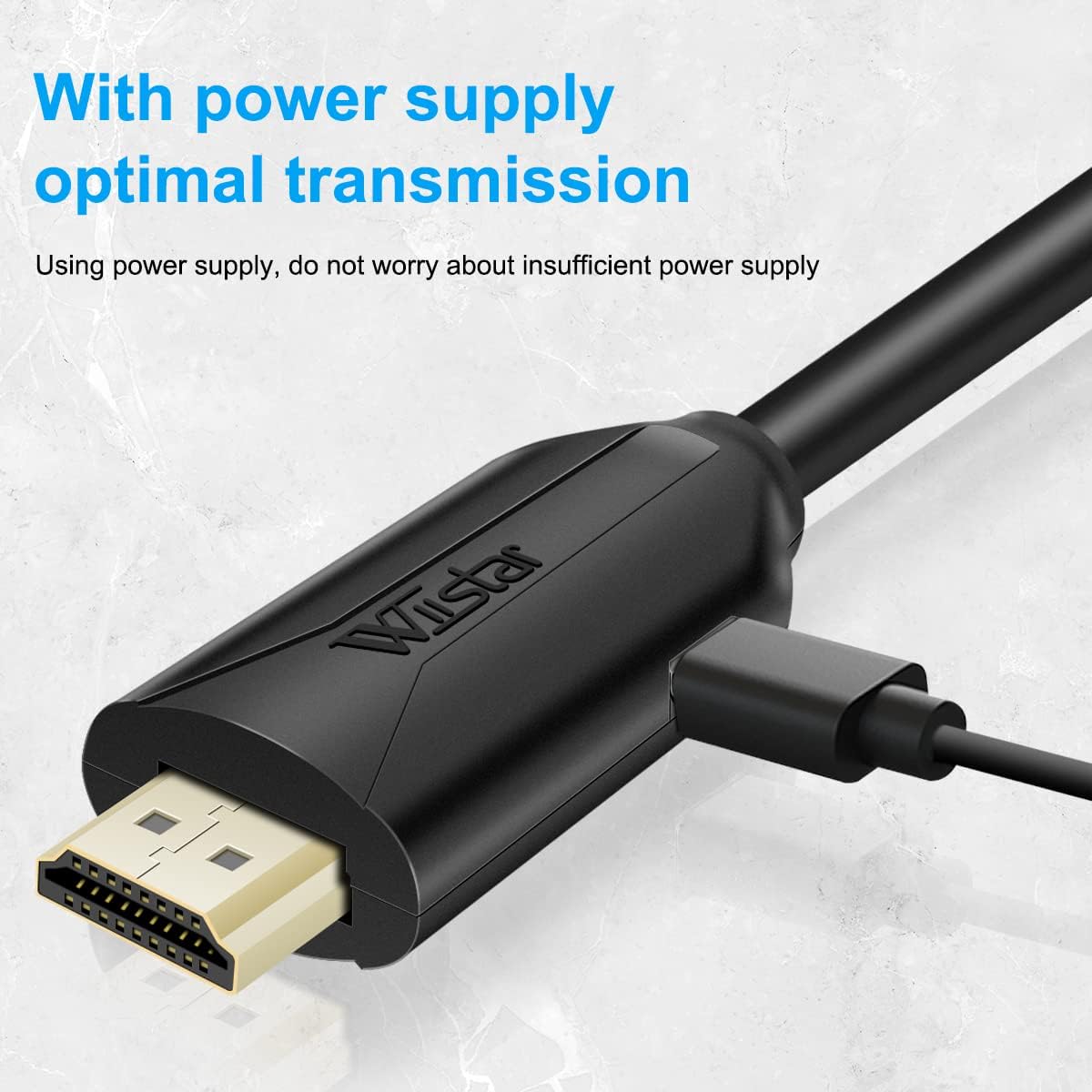

【Power Required】 Need TX Aand RX power supply， Solve the problem of insufficient power supply of equipment and improve compatibility
【Package Included】1 x HDMI 60M extender transmitter + receiver, 2 x us Power adapter
