Product description

EH1211 is the upgrade version based on previous EH1201.

EH1211 is H.265/H.264/MJPEG mini HDMI video encoder with new USB and TF card ports. Widely applied to professional Live broadcast, IP-TV system, elevator advertising player, online courses, broadcast meeting.

1 USB Disk&TF Card Ports

2 Customize Cropping

1 Connection Diagram

2 Resolution of 2 Feeds

CATV digital head-end, hotel IP-TV system, live broadcasting, broadcasting media server, elevator advertising player, online courses,broadcast meeting, fit for the online live broadcast platform, such as YouTube, Ustream, Twitter, WOWZA, Facebook Live, etc.

SPECIFICATIONS ——Mini H.265 1080P@30 Video Encoder ZY-EH1211

Video Input/Output Video Input: 1×HDMI 1.4; Video Output:1×Ethernet port (RJ45), 1×HDMI 1.4 Loop-out Support Resolution 1920*1080, 1280*720, 1024*576, 960*540, 850*480, 720*576, 720*540, 720*480, 720*404, 704*576, 640*480, 640*360, Auto Frame rate ≤ 60hz HDCP/Video encoding Support HDCP 1.4; H.265&H.264/MJPEG Max bitrate/Rate control 16kbps- 20Mbps;CBR/VBR Audio Input/Output Audio Input:1×External audio, HDMI built-in Audio ; Audio Output:1×audio output Audio Encoder type MP3/MP2/AAC/G711/AC3/EAAC/EAACPLUS Bit-rate Option 48K,64K,96K,128K,160K,192K,256K Sampling Accuracy 24 Bit Audio Data-rate 64Kb/s to 384Kb/s RJ45/Protocols 100M Ethernet port; HTTP, RTSP, RTMP/RTMPS, SRT, HLS, FLV, is compatible with ONVIF, Multicast: UDP/RTP Control Panel/Firmware Update Web panel (Language is English), remote upgrade;Enable by uploading files to the dashboard USB Interface/Humidity USB2.0;<90%, non-condensing Dimension(W*L*H) 4.9*2.8*1in(125*72*25mm) Gross Weight/Temperature 0.2kg;0 ~ 45℃（for working）,-20~60℃（for storing) Input Voltage/Power DC 12V/1A; 3W

【Upgrade Notice】Please kindly note that this mini video encoder EH1201 has been upgraded to EH1211 from the stock batch after Jul.29th, 2025. The new EH1211 add extra USB and TF card port on the back of the device for you to record RTSP broadcasting video or record from HDMI video source to the external USB disk or TF card. Also, it supports customize cropping and encoding of input signal source video images. For more details, please find details in below webpage. Please note that EH1211 is upgraded both on chips and apperance, so the previous EH1201 can’t been upgraded to new EH1211 by firmware.

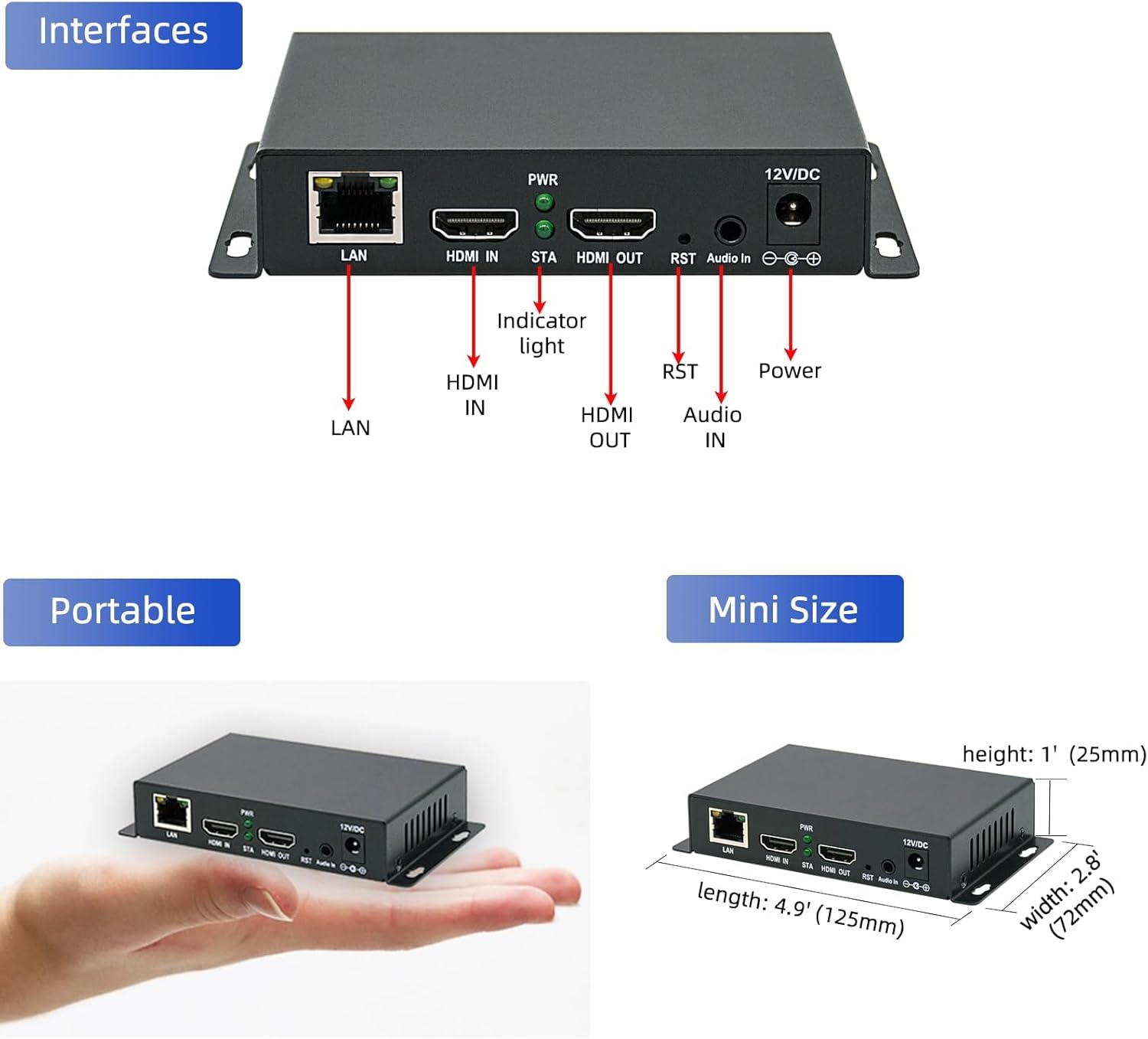

【ORIVISION Advantage& Ultra Mini Model】- This ORIVISION ultra mini video encoder has high integration with low cost. Ultra mini size(125x72x25mm) and light weight (200g) of H.265 encoder is perfect for live broadcasting applications with frequent move or tiny device installation space. IP encoder has 1 X HDMI Input and loop-out, 1 X 3.5mm audio input,1 X 3.5mm audio output(new), 1X USB2.0 port(new), 1X TF card port(new). IPTV encoder support audio encoding without video input.
【1080P@30HZ Input/Output Resolution & 2 Channel Output】- HDMI encoder supports max 1080P@30 resolution HD input and output. The video encoder for live broadcasting can output 2 channels feeds at the same time. While only 1 channel can reach 1080p output. The H.265/ H.264 encoder supports multiple different protocol feeds output at the same time, but does not support simultaneous output 1080P30.
【Multi-Protocols & Software & Platform & Flip Supporting】- Hardware encoder supports protocols including HTTP/HTTPS/RTSP/RTMP/RTMPS/SRT/UDP/RTP/FLS/FLV,is compatible with Onvif protocol. Multicast UDP/RTP. HDMI video encoder supports software like Flashplayer, OBS, VLC player, Vmix..etc. Fit for Youtube, Facebook, Ustream, Livestream, Twitch, Vimeo, Streamspot, Dacast, Tikilive, Netrmedi, etc. This video encoder also supports new function of image rotation and mirror flip. More convenient for live broadcasting.
【Powerful OSD Setting】- OSD setting function of the live broadcasting encoder makes it easy for you to add any self-defined text, time and image overlay on your video when output displayed. You may add any text/logo at any position to announce your copyrights with this hevc video encoder.
【Free Support and Service】ORIVISION encoder is supported by 20 years’ manufacture experience of video transmission device by our leading technology. Encoder products are backed with a 3-year limited warranty.Support remote technical service, free firmware upgrade.Please feel free to contact us(1,Find your order. 2,Click button “Contact Seller”), we will resolve your question within 24 hours.
