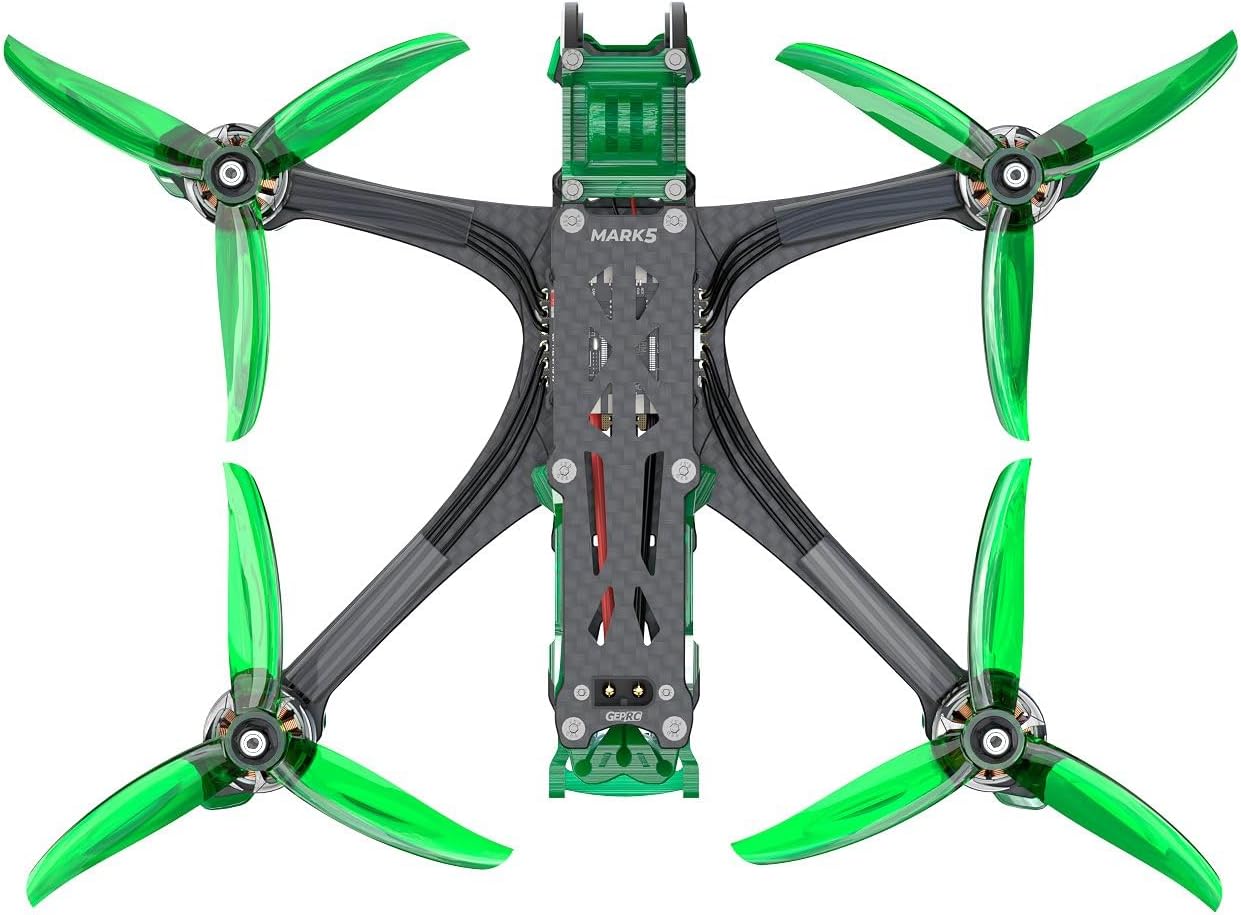

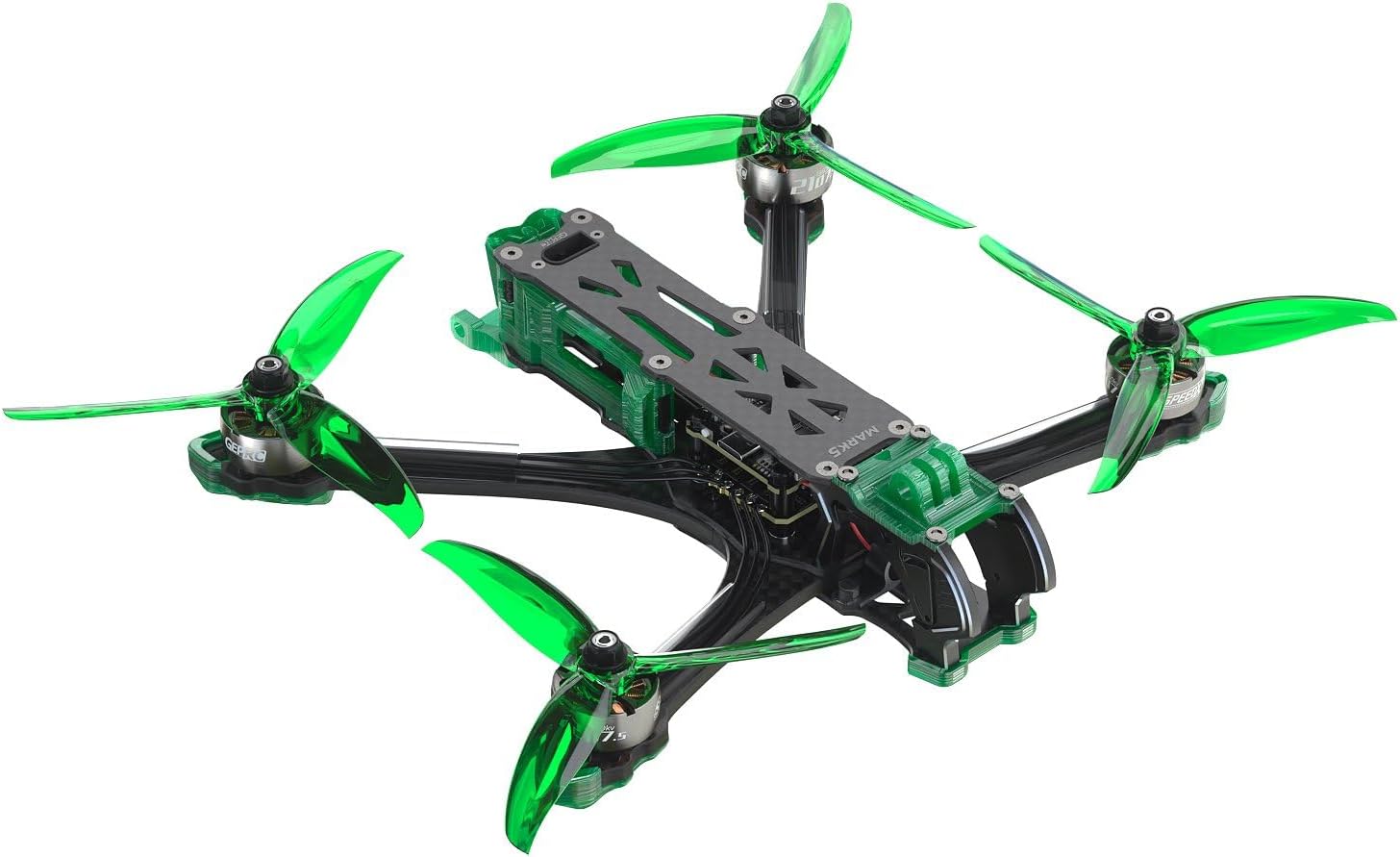

GEPRC MARK5 O4 Pro DC WTFPV Drone (6S PNP)
Posted inElectronics

GEPRC MARK5 O4 Pro DC WTFPV Drone (6S PNP)

View on Amazon

Specfication

  • Model: MARK5 O4 Pro DC WTFPV FPV
  • Wheelbase: 230mm
  • Weight: 392.8g ± 5g
  • VTX: None
  • Camera: None
  • Antenna: None
  • Motor: SPEEDX2 2107.5 1960KV
  • Prop: Genfan 5136
  • FC: GEP-F722-BT-HD V3
  • MCU: STM32F722
  • IMU: ICM42688-P(SPI)
  • OSD: BetaFlight OSD w / AT7456E chip
  • ESC GEP-BL32 50A 96K 4IN1 ESC
  • Power Connector: XT60
  • Receiver: PNP / ELRS 2.4G / TBS NanoRX
  • Recommended Battery: LiPo 6S 1050mAh-1550mAh
  • Printouts Color: emerald green/coral orange

Include

1 x GEPRC MARK5 O4 Pro WTFPV FPV
1 x Gemfan 5136 (2CW 2CCW）
1 x 15*250mm Straps
2 x 20*250mm Straps
2 x Battery anti-slip pads
1 x 3D printouts pack
1 x Spare Screw Pack
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
1 x L-shaped screwdriver 3mm
1 x M8 wrench

Spare Screws Include:

1 x M5 flanged nylon nut
2 x M2 stainless rivet nut
1 x M5*25 Stainless round-head hex screw
4 x M3*10 button-head hex socket screw
4 x M3*8 button-head hex socket screw
2 x m3*8 countersunk hex socket screw
2 x m3*5 countersunk hex socket screw
[O4 Pro Optimized Integration​] Redesigned aluminum camera mount with vibration-dampening silicone ensures seamless compatibility with the O4 Air Unit Pro, delivering stable aerial footage and precise control during dynamic flights.
​[Modular X-Frame Construction​​] Aerospace-grade 3K carbon fiber combines racing agility with freestyle durability. Tool-free arm replacement simplifies maintenance while maintaining structural integrity for versatile flying scenarios.
​[Multi-Camera Support System​​] Dual TPU shock-absorbing mounts accommodate all action cameras. Quick-swap design adapts to various devices within seconds, enhancing creative flexibility for content creators.
​[Proactive Vibration Control​​] Isolated electronics compartment and layered damping architecture minimize interference, ensuring consistent gyro performance and reliable operation in high-speed maneuvers.
​[Universal Antenna Solutions​​] Rear-mounted adapter supports OEM and third-party antennas. Mech-inspired side panels merge protective engineering with modern aesthetics for a balanced visual and functional profile.
