Product description

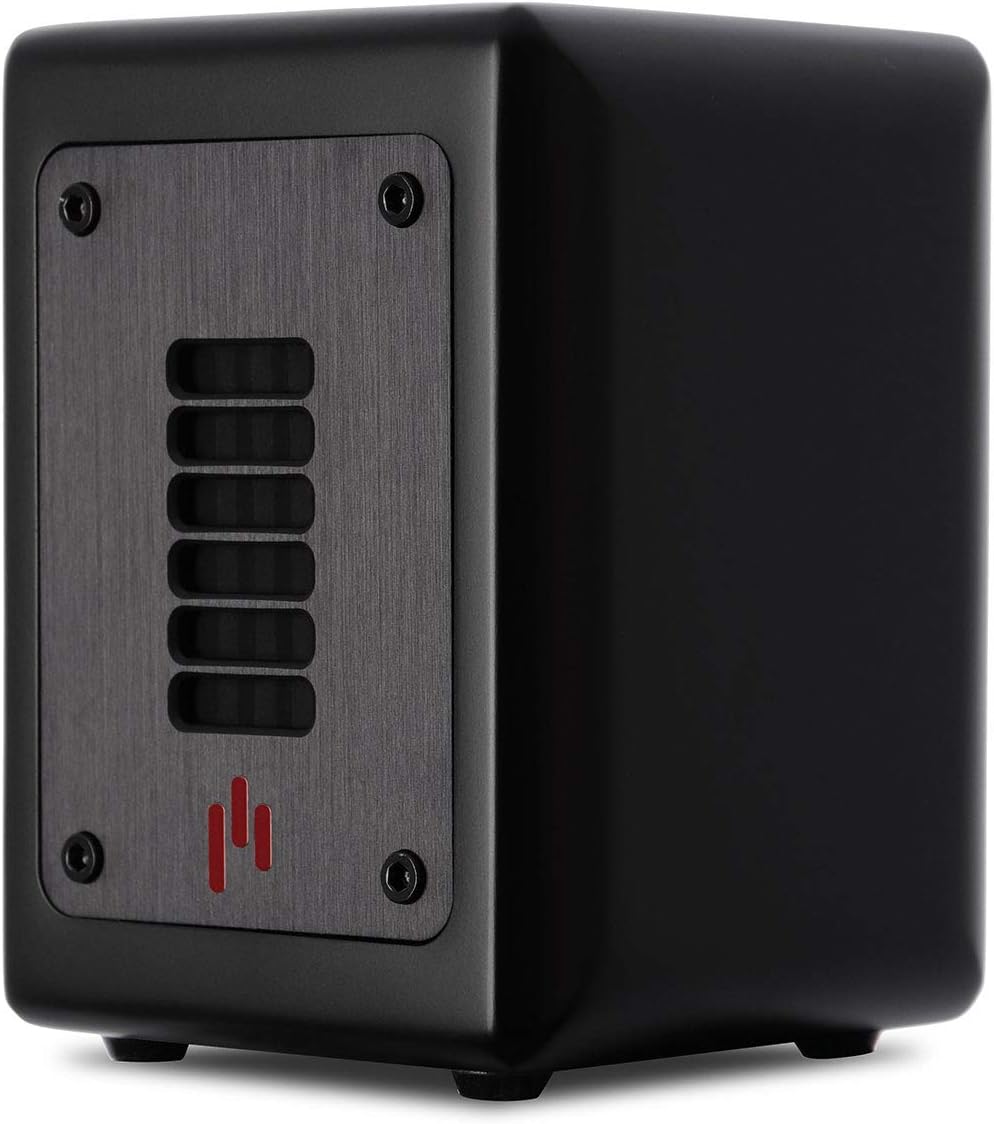

Aperion Audio PST Planar-Magnetic Ribbon Super Tweeter Speaker Pair MKII

This Super Tweeter is a planar-magnetic, flat-ribbon tweeter consisting of Kapton film with a pattern of aluminum conductors. The crossover network used non-inductive resistors, and use film semiconductor capacitors. A linear phase response provides time coherent sound reproduction, allowing for an accurate sound stage.

What is a Super Tweeter speaker? Put simply, it’s an additional tweeter unit which covers a wide and extended high-frequency response, beyond that of your existing loudspeaker’s integrated tweeters.

Many loud speaker systems have poor high frequency performance. A Super Tweeter specializes in ultra-high frequencies and is used in conjunction with a bookshelf or tower speaker. Its purpose is to create a more realistic sound field, often characterized as “airiness,” that enhances the listening experience. Super Tweeters are sometimes found in high fidelity speaker systems and home theater systems. They are used to supplement the sound of tweeters by reproducing frequencies which the existing tweeter may produce only with a narrow polar output, or perhaps with distortion. A Super Tweeter speaker provides auxiliary high frequency effect, detail, density and texture that can enhance your existing system’s sound field with width, depth and enhanced timbre.

Aperion Super Tweeter is generally intended to respond well into ultra-high frequencies over 20 kHz, the commonly accepted upper frequency limit of human hearing. Super Tweeters are ideal for taking advantage extended-range audio formats such as vinyl, SACD, FLAC, UHD Bluray and other high-fidelity products.

Features

Extended High Frequency Flat-Ribbon Tweeter

This is not your normal tweeter. While most tweeters max out at around 20K, the APERION Planar Ribbon Super Tweeter extends another 20,000+ Hertz above that.

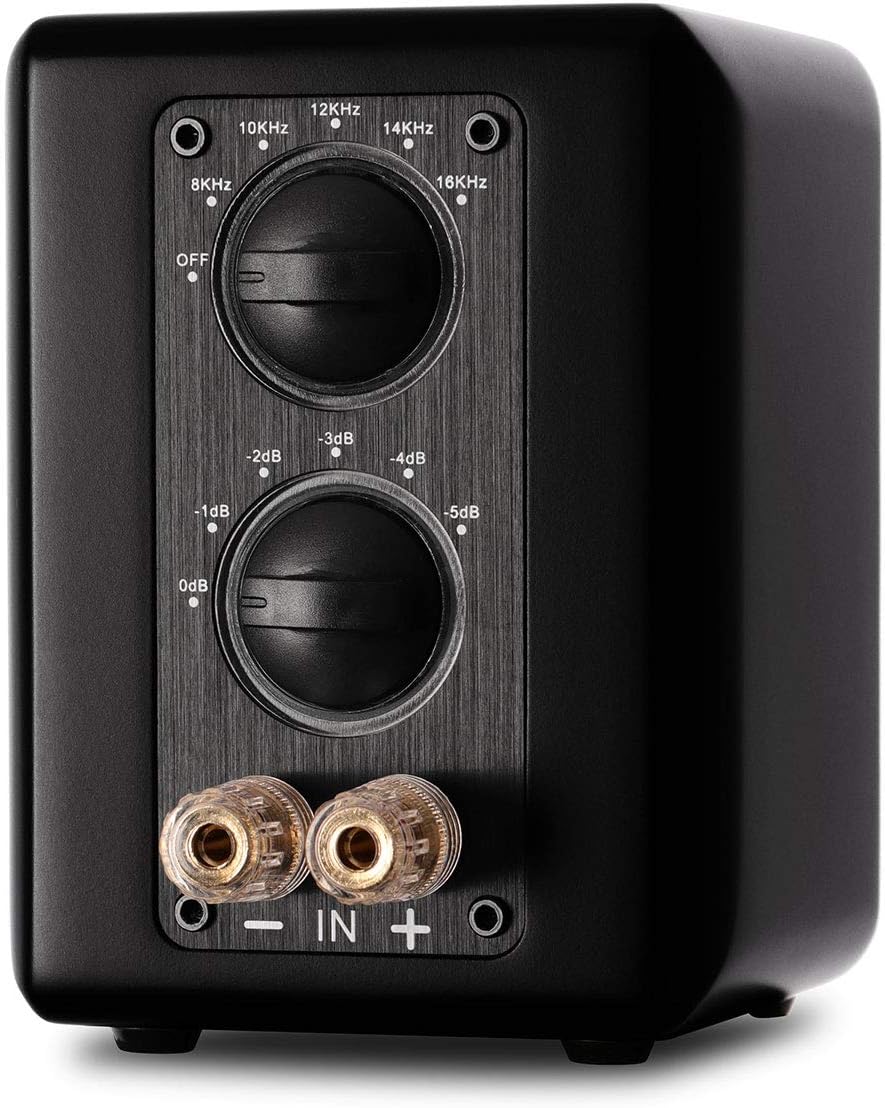

5-point Crossover + OFF

Choose between 8, 10, 12, 14 or 16 kHz to set the Super Tweeter floor for the perfect blend with your speaker. The “OFF” position renders the Super Tweeter inert. The lowest setting, 8 kHz, will provide the most overlap with your existing tweeter while the highest setting, 16 kHz, will have minimal overlap, picking up at the top-end of the range. The crossover slope is 12 dB/octave.

Treble Adjust Knob

Too much of a good things? Use the treble adjust to reduce the output of the Super Tweeter. Just flip the switch and adjust to taste, up to -5dB.

Beautifully Curved Cabinet

The finishing touch for every Super Tweeter Speaker is a matte black/white or piano-black lacquer that’s so right for every decor, your coffee table will be jealous.

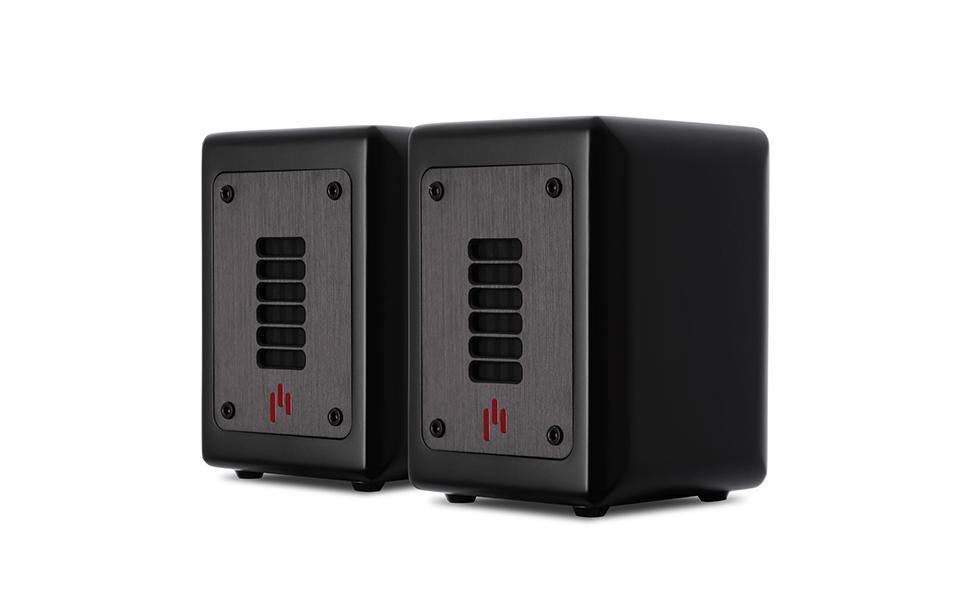

PST Super Tweeter Stealth Black

Specification

Frequency Response: 8 Khz-40 Khz

Impedance: 6 Ohms

Sensitivity: 94 dB

Crossover Points: 8K, 10K, 12K, 14K, 16K & off

Treble Adjust: 0,-1dB,-2dB,-3dB,-4dB,-5dB

Crossover Slope: 12 dB/octave

Recommended Power: 10-100 Watts

Direct Power Handling: 20 Watts

Tweeter: APERION Planar-magnetic “Flat Ribbon” Tweeter

Product Weight: 1.65 lbs/0.75 Kg per each

Product Dimensions: 5.27″ x 4″ x 5″ / 134 x 102 x 127 (HxWxD)

Placement Location: Add on top of speakers

Shipping Weight: 4.5 lbs/ 2 Kg per pair

Shipping Dimensions: 7″ x 12″ x 8″/180 x 302 x 206mm (LxWxH)

Easy Connection

The Super Tweeter shares the same binding posts as the speaker you’re pairing it with. It feeds off the power your main speaker is already receiving, so no need to connect directly to an amplifier.

Graph showing the extended frequency response of our Super Tweeter on the 14 kHz and 16 kHz settings when paired with a bookshelf speaker:

Aperion Super Tweeter Sensitivity Ranges:

PST Planar Ribbon Super Tweeter:

Can be suitably matched with any speaker whose sensitivity is between 85-94 dB

RST Aluminum Ribbon SuperTweeter

can be suitably matched with any speaker whose sensitivity is between 85-96 dB.

DST AMT Ribbon Super Tweeter:

can be suitably matched with any speaker whose sensitivity is between 85-96 dB.

HST AMT Ribbon Super Tweeter:

can be suitably matched with any speaker whose sensitivity is between 98-103 dB.

Customer`s Pictures

FAQ

What kind of speakers will the Super Tweeter work with?

Answer: Most passive bookshelf or tower speakers are great candidates for the Super Tweeter. But, you can also use them with center channel speakers and surround speakers.

How do I connect the Super Tweeter speaker to my passive speakers?

Answer: The Super Tweeter connects directly to the binding posts on the speaker you are pairing it with (not to the amplifier!). This parallel connection allows the Super Tweeter to feed off the same signal as your main speaker.

Since the Super Tweeter will most likely be sharing the binding posts with your amplifier connection, using wire with spade or ring connections will allow both sets of wires to easily connect to the same binding posts. If your speakers are bi-ampable, you can use one set of binding posts for the Super Tweeter and the other for the amplifier (making sure to keep the jumpers in place).

Can I use the Super Tweeter speaker with my active (powered) or Bluetooth speakers?

Answer: If it’s a sealed box, or portable type of Bluetooth speaker, you most likely will not be able to use a Super Tweeter with this speaker.

“Will the Super Tweeter work with my electrostatic, full range, or professional audio speakers?”

Answer: We advise you to check the sensitivity level and frequency response of your current speakers. A speaker that has a higher sensitivity level rating than the Super Tweeter might not be a good fit. However, the we’ve received feedback that the Super Tweeter works great with Bose 901’s, Quad Electrostatic 2805, and other full range and electrostatic speakers.”

How much will the Super Tweeter change the treble response? Answer: The crossover setting will have the most effect on the treble sound. If your regular speaker doesn’t produce frequencies above 14 kHz very well, then that would be a good starting point for your crossover. Generally setting the crossover to 14 kHz or 16 kHz will add a nice touch to the treble response.

What speaker wire is best for the Super Tweeter speaker? Answer: As with all cable, we recommend at least 14 gauge to minimize any loss of electrical current.

What’s the highest frequency the Super Tweeter will reach? Answer: The Aperion Audio Super Tweeter can reach up to 35 kHz.

Add to Cart

Customer Reviews

4.0 out of 5 stars 98

3.8 out of 5 stars 26

3.8 out of 5 stars 25

4.6 out of 5 stars 20

Price

$399.00$399.00
— no data
$419.00$419.00 $649.00$649.00 $999.00$999.00 $50.00$50.00

SPL
94 dB 94 dB 94 dB 96 dB 96 dB no data

The Aperion Audio Super Tweeter is a high-fidelity compliment to any home audio system. They add a subtle touch to the high frequency range and blend seamlessly with many brands of speakers.
Designed to reside on top of your existing speaker, the Super Tweeter will slightly boost the frequency range of 8,000 Hz to 40,000 Hz and employs a high pass filter with 5 preset crossover points.
Unlike a horn tweeter, the Super Tweeter delicately handles high frequencies, bringing a new dynamic to your sound field. The Planar Magnetic Super Tweeter works best with speakers having 85 to 93 dB efficiency.
Please do not expect this tweeter to be extremely loud. This is a special tweeter which adds a subtle boost to the upper register frequencies. Please note the efficiency of your speakers to ensure the Super Tweeters are compatible with your existing speakers. If you have any questions, please contact the customer service team at Aperion Audio.
