Product description

Power meets precision with PSB-1000DSP (Version 2) Class D Subwoofer Power Amplifier, which is the ultimate bass amplification solution that built by the super-efficient Class D output topology ensures tight, high-impact low frequency performance.

The PSB-1000DSP combines exceptional output with advanced built-in DSP — eliminating the need for separate external processors — all accessible through a single-knob control panel with high-contrast LCD display and remote control, easy to make the adjustments from the comfort of your favorite listening for any home cinema, multi-zone audio, or 2.1 channel music system.

The PSB-1000DSP offers a highly dynamic, fully customizable listening experience. Delivering 1000 watts of the Class D power, it can effortlessly drive even the most home theater or the large home cinema application.

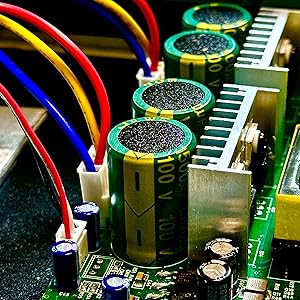

Long Life High performance Low ESR Capacitors Upgraded

The Version 2 of the PSB-1000DSP comes with the upgraded Low Impedance Capacitors on both Power Module and Amplifier Module circuit boards, which is the longer load-life rating than general-purpose capacitors, less power losses and internal heating problems, also increased stability with temperature (impedance ratios), and avoid the amplifier blown out issue.

Efficient Class D Amplifier Technology Delivering high power with minimal noise, the PSB-1000DSP utilizes ultra-efficient Class D amplifier technology. Unlike traditional Class A/B designs, its high-speed digital switching delivers greater efficiency, reduced heat, and lower power consumption. With 1000 watts of output, the PSB-1000DSP has the strength to drive even the largest and most demanding speakers while maintaining clean, precise sound reproduction.

Features:

– Power Handling 1 x 1000W RMS @ 4 ohms load ( or 1 x 500W RMS @ 8 Ohms Load)

– Class D circuit designed – Built-in DSP settings for Crossover, Limit, Phase, Volume, Mute

– Set and save your 3 favor bass frequency and volume level setting for music listening, movies and late night mode

– LCD display on the front panel

– DC12V Trigger In for remotely Turn-on

– DC12V Trigger Out to trigger external device

– Music/12V Trigger on – Standby mode (Only switch at “Music” position)

– Selectable Voltage

– Designed in 2U rack

– RS-232 control interface

– Short circuit and thermal protection are built-in

– Powered by AC power cord

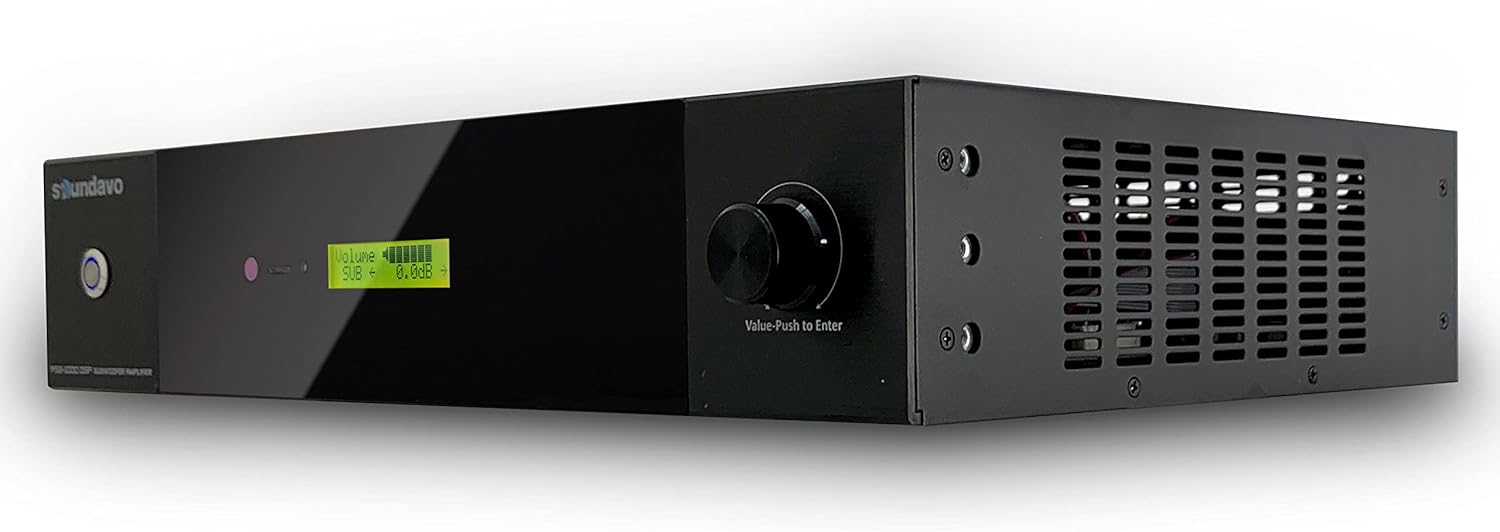

Front Panel LCD Screen

The front panel screen displays the volume level and other control settings. Access the menu function screen using the selection knob to adjust volume, crossover, phase, and EQ settings. The front panel backlit LCD screen will go dark after 2 minutes with no adjustments.

Crossover Frequency Control

The amplifier offers flexibility to adjust the crossover frequency from 60Hz ~ 150Hz, allows store up to 3 presents are optimized for 8”, 10” and 12” subs, or even the 15″ and 18″ floor stand style PA subwoofer speaker.

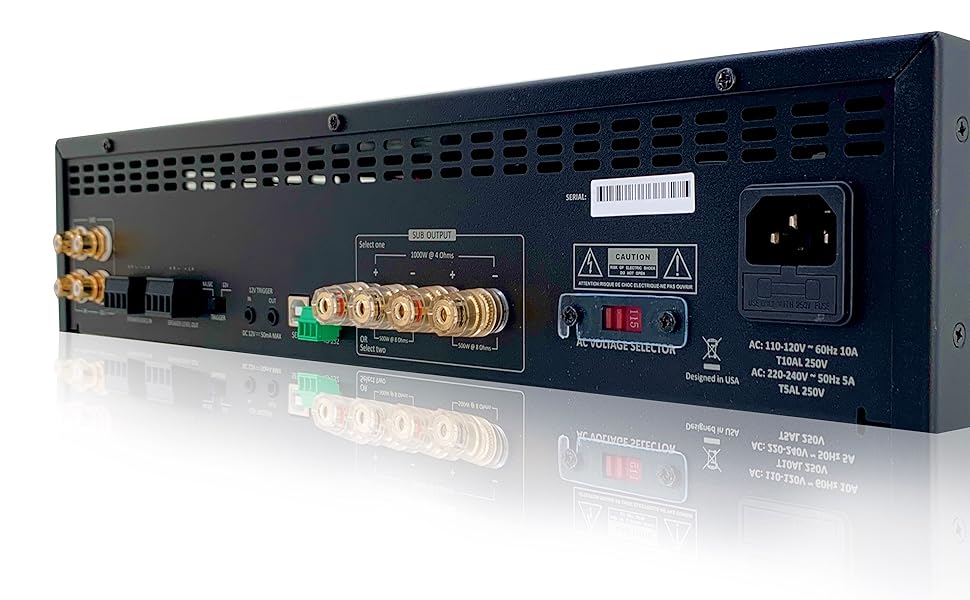

Dual Sub Speaker Outputs

Premium quality 5-way binding posts allow your to connect single or dual subwoofer speakers between 1 x 1000W RMS @ 4 Ohms (and 2 x 500W RMS @ 8 Ohms Minimum Load).

IR Remote Controller

Easy to set and save your 3 favor bass frequency and volume level setting by the remote controller for music listening, movies and late night mode.

Spec:

– Power Output:

Select one – Single Subwoofer Speaker Connection: 1 x 1000W RMS @ 4 Ohms Minimum Load ( or 1 x 500W RMS @ 8 Ohms Load)

Select two – Dual Subwoofer Speakers Connection: 2 x 500W RMS @ 8 Ohms Minimum Load ONLY

– Total Harmonic Distortion (THD): <1%(Rated power: 1000W @ 4Ω)

– Adjustable Low Pass Crossover: 35HZ – 180HZ

– Adjustable Slope: 12dB – 48dB

– Line Level Input Sensitivity: 200mV

– Phase Range: 0 ~315° / 45° increments

– Auto Turn-on Sensitivity: 3mV @ 50 Hz Trigger Out: 12V

– Thermal Protection: Yes

– Night Mode: Yes

– Remote Control: Yes

– RS-232 Control: Yes

– Single Ended and Balanced Input: Yes

– Dimension: 17.12″ x 3.5″ x 9.4″ (WxHxD)

– Weight: 8.4 lbs

✅【High Wattage Power Output】2U design subwoofer amplifier delivers plenty of solid clean power with high fidelity, strong and deep bass frequency to drive medium-to-large sized in-wall or floor stand style subwoofer speakers. It provides 1 x 1000 watts RMS @ 4 Ohms ( or 2 x 500W RMS @ 8 Ohms Minimum Load ONLY ), makes your home audio and home theater audio system’s bass shocking auditory effects feel like in the cinema.
✅【Easy Connection to Any System】Features a stereo/mono line level audio input that can receive full band audio from any audio amplifier, receiver or preamp or an LFE input, also features a stereo speaker level input/outputs connector and passthrough for easy to work with older amplifier/home theater receiver do not have line level output
✅【RS-232 Control Ports】 Built-in RS232 control over the master volume and master muting of the amplifier Through the use of RS-232 commands, this interface will control an internal digital potentiometer and mimic the standard 10KΩ potentiometer typically put into a wall- plate. The available commands will mute, increase or decrease the vol- ume, or set the volume to a speci c value.
✅【Digital Signal Processing (DSP) Performance】Built-in digital signal process (DSP), access the menu function screen for using the selection knob to choose and adjust Master Volume Level, Crossover Frequency, 4 different Crossover Slopes, Phase, 4 different Low Cut. Allows store up to 3 presents are optimized for 8”, 10” and 12” subs.
✅【Audio On/Off Detects, RS-232 & 12VDC Trigger】A three way switch on the rear panel allows you to select the 12V trigger mode, auto on/off by music signal detect mode, or set to the always-on mode. The amp will also can be Choose from 5-30 minutes in 5 minute increments or turn the function off from the DSP menu.
